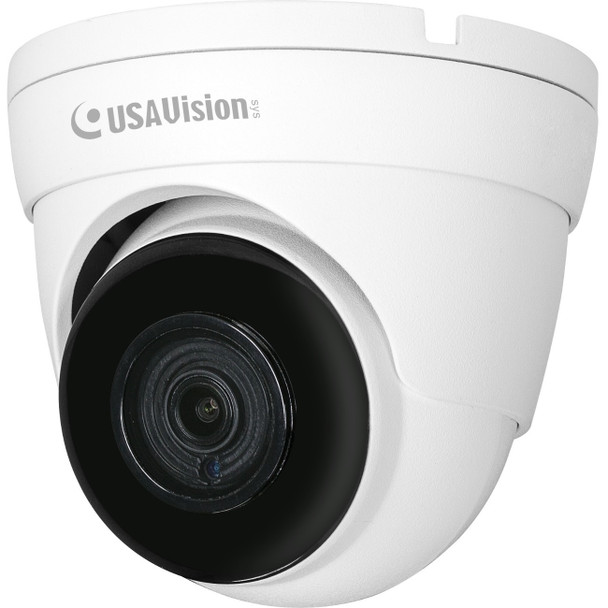

GeoVision UA-CR510F2 5 Megapixel Outdoor Surveillance Camera - Color - Dome
(No reviews yet)
Write a Review
- SKU:
- 19023178
- MPN:
- ua-cr510f2
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
UA-CR510F2 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more.
Package Contents:
- 5 MP Super Low Lux IR Eyeball Dome Camera
- Screw Kit
- Drill Template Paster
- Download Guide
Features
Package Contents:
Yes
Outdoor
Restriction of Hazardous Substances (RoHS)
IP66
- 5 MP Super Low Lux IR Eyeball Dome Camera
- Screw Kit
- Drill Template Paster
- Download Guide
Environmentally Friendly:
Yes
Indoor/Outdoor:
Outdoor
Features:
Built-in IR LED
Built-in Microphone
Ingress Protection
Removable IR Cut-off Filter
Day/Night
Built-in Infrared Illuminator
2D Digital Noise Reduction (2DNR)
Auto Gain Control
Automatic White Balance
Back Light Compensation (BLC)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ingress Protection Rating:
IP66
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Dome |
| Weight (Approximate) | 14.46 oz |
| Mount Type |
|
| Diameter | 3.9" |
| Warranty | |
| Limited Warranty | 12 Month |
| Display & Graphics | |
| Effective Camera Resolution | 5 Megapixel |
| Image Sensor Type | CMOS |
| Field of View | Horizontal: 111.4°, Vertical: 58.8°, Diagonal: 134° |
| Color Supported | Color |
| Video | |
| Maximum Frame Rate | 30 fps |
| Maximum Video Resolution | 2592 x 1944 |
| Video Signal Format |
|
| Analog Video Signal Format |
|
| General Information | |
| Brand Name | GeoVision |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | UA-CR510F2 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more. |
| Product Type | Surveillance Camera |
| Product Name | 5 MP Super Low Lux IR Eyeball Dome Camera |
| Manufacturer | GeoVision, Inc |
| Manufacturer Part Number | UA-CR510F2 |
| Product Model | UA-CR510F2 |
| Lens | |
| Maximum Aperture | f/1.6 |
| Lens Type | Fixed |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Focal Length | 2.80 mm |
| Network & Communication | |
| Remote Management | No |
| Connectivity Technology | Wired |
| Technical Information | |
| Night Vision Type | Infrared |
| Number of IR LEDs | 18 |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Environmental Conditions | |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
