Aorus GP-ASM2NE6200TTTD 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe [PCI Express NVMe 4.0 x4] (235651)
(No reviews yet)
Write a Review
- SKU:
- 18014043
- MPN:
- 235651
- Availability:
- Out of stock
- Stock Update:
- 02/09/2024 08:01:39 AM PST
- Stock Update:
- 02/09/2024 08:01:39 AM PST
Description
This item is brand-new, factory sealed.
Form Factor: M.2 2280Interface: PCI-Express 4.0x4, NVMe 1.3
Total Capacity: 2000GB
Sequential Read Speed : up to 5000 MB/s
Sequential Write speed : up to 4400 MB/s
Wear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported

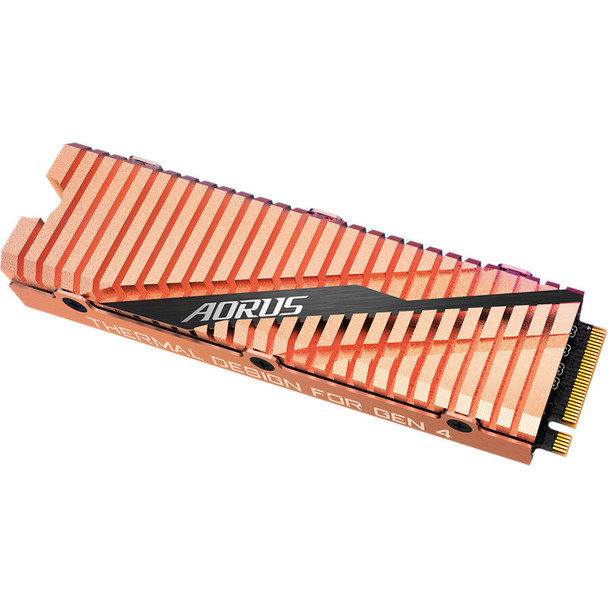

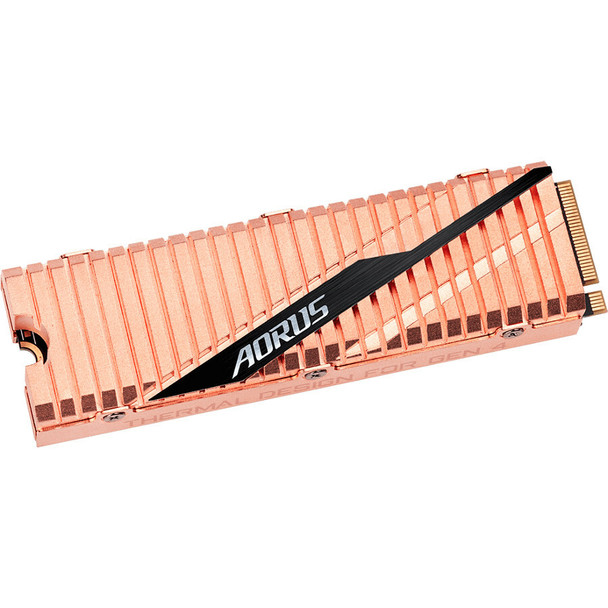

Fully Body Copper Heat Spreader
Warranty: Limited 5-years

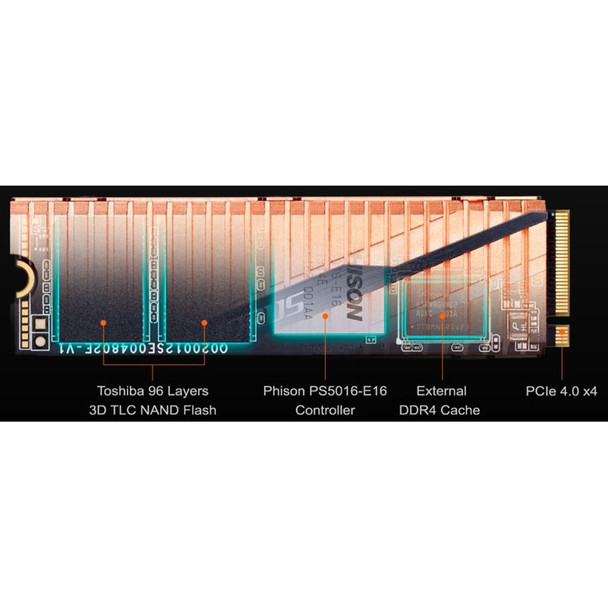

World First PCIe 4.0x4 Controller
The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
NAND Flash Selected for High Quality and Performance
TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)
Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.
Xtreme Storage Performance
With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
Interface
PCI-Express 4.0x4, NVMe 1.3 Form Factor
M.2 2280 Total Capacity
2000GB NAND
3D TLC Toshiba BiCS4 External DDR Cache
DDR4 2GB Sequential Read speed
Up to 5000 MB/s Sequential Write speed
Up to 4400 MB/s Random Read IOPS
up to 750k Random Write IOPS
up to 700k Mean time between failure (MTBF)
1.77 million hours Power Consumption (Active)
Average: R : 6.5W, W : 6.6W Power Consumption (Idle)
21.1mw Temperature (Operating)
0oC to 70oC Temperature (Storage)
-40oC to 85oC Note
Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSDs firmware version and system hardware configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
1GB is equal to 1 billion bytes. Actual useable capacity may vary.
5 years or 3600TBW, whichever comes first.
Item Dimension (L"xW"xH")
6 x 4 x 2
Weight
1.00 LB
Warranty Information
3 years
Features
Country of Origin:
China
China
Specs
| Power Description | |
| Operating Power Consumption | 6.60 W |
| Physical Characteristics | |
| Form Factor | M.2 2280 |
| Drive Type | Internal |
| Height | 0.4" |
| Width | 0.9" |
| Depth | 3.2" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Drive Interface | PCI Express NVMe |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | World First PCIe 4.0x4 Controller The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs. PCIe 4.0x4, NVMe 1.3 Interface DDR4 DRAM cache 8 CH with 32 CEs Phison 4th Gen LDPC & RAID ECC Support Pyrite Heat spreader for controller NAND Flash Selected for High Quality and Performance TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s) Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance. Xtreme Storage Performance With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering. Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance. Efficient Copper Heat Spreader Design Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate. Why is keeping an SSDs at lower temperatures so important? Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods. SSD Tool Box The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link. SSD tool box function may vary by model Quality Guaranteed Extreme Performance Comes From High Standard Test |
| Product Type | Solid State Drive |
| Product Name | NVMe Gen4 SSD 2TB |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GP-ASM2NE6200TTTD |
| Product Model | GP-ASM2NE6200TTTD |
| Drive Performance | |
| Maximum Read Transfer Rate | 5000 MB/s |
| Maximum Write Transfer Rate | 4400 MB/s |
| Buffer | 2 GB |
| Endurance (TBW) | 3600 TB |
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 2 TB |
