Gigabyte Technology

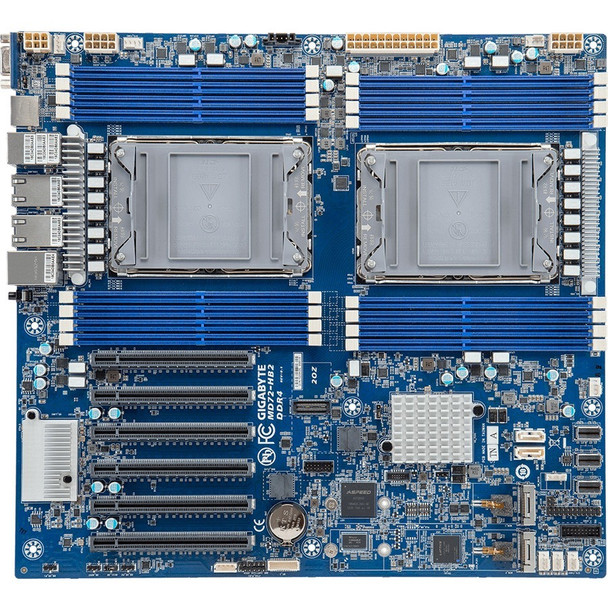

Gigabyte MD72-HB2 Server Motherboard - Intel C621A Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX (261314)
(No reviews yet)
Write a Review
- SKU:
- 18897612
- MPN:
- 261314
- Availability:
- Usually ships in 1-2 business days. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/26/2025 04:40:52 AM PST
- Stock Update:
- 12/26/2025 04:40:52 AM PST
Description
This item is brand-new, factory sealed.
Motherboard - 3rd Gen Intel Xeon Scalable - E-ATX DP 10Gb/s LANDual 3rd Gen Intel Xeon Scalable Processors
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
Supports Intel Optane Persistent Memory 200 series
Intel C621A Chipset
2 x 10Gb/s BASE-T LAN ports via Intel X710-AT2
2 x 1Gb/s LAN ports via Intel I210-AT
3 x SlimSAS connectors for 12 x SATA 6Gb/s
2 x SATA 6Gb/s ports
2 x M.2 slots with PCIe Gen4 x4 interface
6 x PCIe Gen4 x16 expansion slots Form Factor
E-ATX
305W x 330D mm CPU
3rd Generation Intel Xeon Scalable Processors
Dual processor, 10nm technology
TDP up to 270W Socket
2 x LGA 4189
Socket P+ Chipset
Intel C621A Memory
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: 3200/2933/2666 MT/s LAN
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
2 x 1Gb/s LAN ports (Intel I210-AT)
Support NCSI function (by switch)
1 x 10/100/1000 Mbps Management LAN Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp Audio
N/A Storage Interface
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports RAID
Intel SATA RAID 0/1/10/5 Expansion Slots
Slot_6: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_5: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_4: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_2: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_1: PCIe x16 (Gen4 x16) slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector for PCIe slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x RJ45 serial port
4 x RJ45
1 x MLAN
1 x ID button with LED TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 OS Supported
Windows Server 2016
Windows Server 2019 (x64)
Windows Server 2022 (x64)
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later Board Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector Operating Properties
Operating temperature: 10oC to 40oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40oC to 60oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
17 x 14 x 4
Weight
7.00 lb
Warranty Information
1 year
Features
Package Contents:
Yes
Taiwan
- MD72-HB2 (rev. 1.x) Server Motherboard
- I/O Shield
- SlimSAS for 4 x SATAIII 6Gb/s Cable
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 13" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x16 Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 16 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| Intel Optane Memory Ready | Yes |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | Where Compute Reigns | 3rd Gen Intel® Xeon® Scalable Processors - "Ice Lake" GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations. Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage. CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel's 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs. Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements. Additionally, support for Intel Optane PMem 200 series provides two modes for greater memory capacity and data persistence to process large amounts of data faster. Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added. AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics. Why GIGABYTE MD72-HB2 | Accelerator Computing | 3 dual-slot GPU supported in compact MB Parallel processing with multiple GPUs are driving discoveries and powering AI and data analytics. Offering support for dual slot GPUs allows for the highest, dense GPU compute possible. Delivering the fastest throughput for data, PCIe Gen 4 lanes are all in x16 mode for a total bandwidth of 64GB/s per GPU. Flexibility | Special one socket usage for early stage testing For those that need to be able to adjust to new needs, GIGABYTE servers have incorporated a high level of flexibility. Scalable CPU usage allowing populating only one socket while maintaining function of 2 dual slot GPUs and all storage. |
| Product Type | Server Motherboard |
| Product Name | MD72-HB2 (rev. 1.x) Server Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | MD72-HB2 |
| Product Model | MD72-HB2 |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 3rd Gen |
| Processor Supported |
|
| Total Processor Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Chipset Model | C621A |
| Onboard Interfaces | |
| Total Number of Onboard USB Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.0 Ports | 2 |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Network (RJ-45) Ports | 5 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Gigabyte MD72-HB2 Server Motherboard - Intel C621A Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX (261314)
$994.01
