Gigabyte Technology

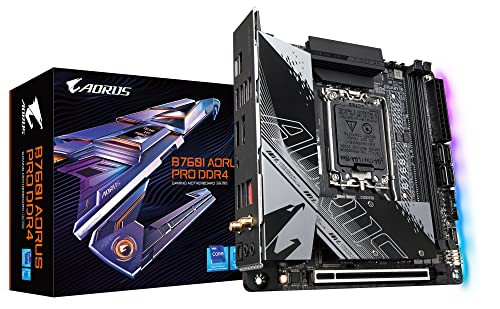

Intel B760IAORUSPRODDR4 B760I AORUS PRO DDR4 Mini-ITX Gaming Motherboard
(No reviews yet)
Write a Review
- SKU:
- 19977329
- MPN:
- b760iaorusproddr4
- Availability:
- Out of stock
- Stock Update:
- 12/13/2025 06:39:58 AM PST
- Stock Update:
- 12/13/2025 06:39:58 AM PST
Description
This item is brand-new, factory sealed.
Intel Socket LGA 1700?Support 13th and 12th Gen Series ProcessorsUnparalleled Performance?Direct 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4?2*DIMMs with XMP Memory Module Support
Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design?Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
Fast Networks?Intel 2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity?Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI
RGB FUSION?Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Please refer to "CPU Support List" for more information.Chipset
Intel B760 Express ChipsetMemory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF OutLAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module
Intel Killer Wi-Fi 6 AX1650 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panelInternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion headerBack Panel Connectors
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacksI/O Controller
iTE I/O Controller ChipH/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash PlusBundled Software
Norton Internet Security (OEM version)
LAN bandwidth management softwareOperating System
Support for Windows 11 64-bit
Support for Windows 10 64-bitForm Factor
Mini-ITX Form Factor 17.0cm x 17.0cmItem Dimension (L"xW"xH")
10 x 9 x 4
Weight
3.5 lbs
Warranty Information
3 Years
Features
Country of Origin:
China
China
Specs
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 1 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. PCIe 4.0 x4 M.2 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD. GIGABYTE PerfDrive PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors. OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. 3% Cooler by implementing | 2X copper PCB Design By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it's high thermal conductivity and lower impedance. Cooling Features High Current Support Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Multiple temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Fan Stop Fan can stop completely below users' specified temperature point CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity. WIFI 6 802.11ax + BT 5 Module Wireless solution 802.11ax WIFI 6 with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | Ultra Durable B760I AORUS PRO DDR4 (rev. 1.0) Gaming Desktop Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B760I AORUS PRO DDR4 |
| Product Model | B760I AORUS PRO DDR4 |
| Product Line | Ultra Durable |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported |
|
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Model | B760 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 5 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI Version | <li>2.0</li> |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| DisplayPort | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
