Gigabyte Technology
Gigabyte Technology GPUD750GMPG5ICE 750W Modular Power Supply Ice Edition
- SKU:
- 21383078
- MPN:
- gp-ud750gmpg5ice
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/29/2026 11:45:20 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $101.97 each 101.97 |
- Stock Update:
- 07/29/2026 11:45:20 PM PST
Description
This item is brand-new, factory sealed.
ATX 3.1 and PCIe GEN 5.1 READY
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3? GPU and 2? system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 450W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
ULTRA DURABLE
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance.
100% JAPANESE CAPACITORS
High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability.

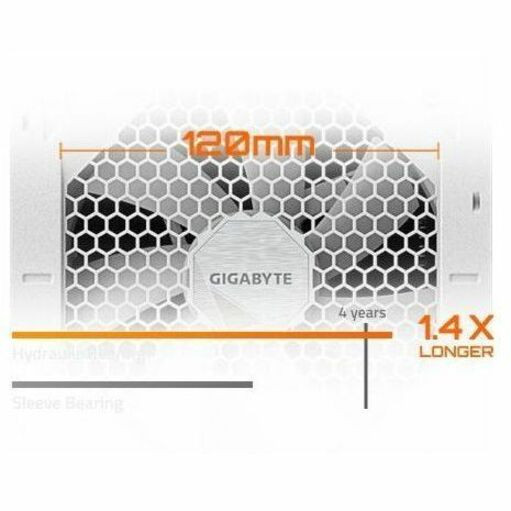

120mm smart Hydraulic Bearing(HYB) fan with smart fan switch
Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
PROTECTIONS
Multiple protection features are integrated to ensure stable operation under any condition. The power supply is also backed by safety certifications from various countries, providing added peace of mind.
FULLY MODULAR DESIGN
Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and compatibility for hardware, offering the easiest installation of power cables and the ideal design for overclocking.
COMPACT DESIGN
Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis.
Features
80 Plus Gold
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Input Frequency | 60-50 Hz |
| Number of +12V Rails | 1 |
| Output Power | 750 W |
| Output Current |
|
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor | ATX |
| Weight (Approximate) | 5.15 lb |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 5.5" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| PCI Express Version | 5.1 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | ATX 3.1 and PCIe GEN 5.1 READY Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3? GPU and 2? system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 450W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond. ULTRA DURABLE Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance. 100% JAPANESE CAPACITORS High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability. 120mm smart Hydraulic Bearing(HYB) fan with smart fan switch Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance. PROTECTIONS Multiple protection features are integrated to ensure stable operation under any condition. The power supply is also backed by safety certifications from various countries, providing added peace of mind. FULLY MODULAR DESIGN Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. SINGLE +12V RAIL The single +12V rail delivers optimal power output, stability, and compatibility for hardware, offering the easiest installation of power cables and the ideal design for overclocking. COMPACT DESIGN Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis. |
| Product Type | Power Supply |
| Product Name | GP-UD750GM PG5 ICE 750W Power Supply |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GP-UD750GM PG5 ICE |
| Product Model | GP-UD750GM PG5 ICE |
| Packaged Quantity | 1 |
| Technical Information | |
| Fan Diameter | 120 mm |
| Specification Compliance | ATX12V v3.1 |
| Efficiency | 90% |
| Number of Fans | 1 |
| Fan Bearing Type | Hydraulic Bearing |
| Protection Type |
|
| Features | Low Noise |
| Modular | Yes |
| Power Factor Correction (PFC) | Active |
| Modular Type | Fully Modular |
| Reliability | |
| MTBF | 100000 Hour |
