Gigabyte Technology

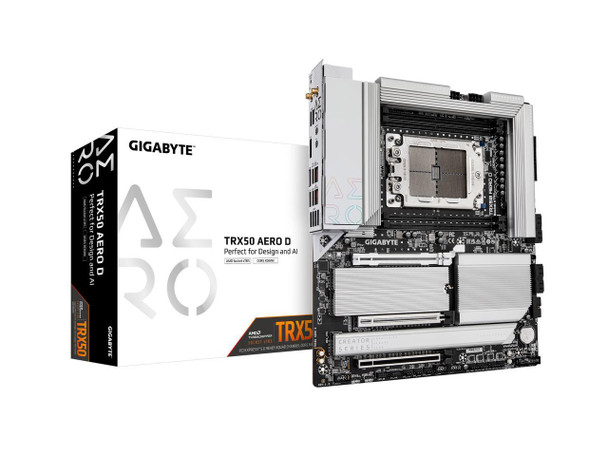

Gigabyte Ultra Durable TRX50 AERO D Desktop Motherboard - AMD TRX50 Chipset - Socket sTR5 - Extended ATX (trx50aerod)
(No reviews yet)
Write a Review
- SKU:
- 20573411
- MPN:
- trx50aerod
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
Key FeaturesSupports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
Breakthrough Performance?16+8+4 Phases Digital VRM Solution
Quad Channel DDR5?4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
Reinforced Overall Thermal?VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
Next-gen Connectivity: Dual USB4 Type-C ports
Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
PCIe UD Slot X?PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click?M.2 heatsinks with screwless design
EZ-Latch Plus?M.2 slots with quick release design
Hi-Fi Audio with DTS:X Ultra?ALC4080+ALC897 CODEC
UC BIOS?User-Centred intuitive UX with Quick Access functionCPU
AMD Socket sTR5, support for:
AMD Ryzen Threadripper PRO 7000 processors / AMD Ryzen Threadripper 7000 Series processors
(Go to GIGABYTEs website for the latest CPU support list.)Chipset
AMD TRX50Memory
Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.)Audio
Realtek ALC4080 CODEC (rear panel audio)
- Support for DTS:X Ultra
- High Definition Audio
- 2-channel
Realtek ALC897 CODEC (front panel audio)LAN
Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)Wireless Communication module
Qualcomm Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual countrys regulations.Expansion Slots
CPU:
- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
CPU+Chipset:
- 8 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devicesUSB
CPU:
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel JHL8540 USB4 controller:
- 2 x USB4 USB Type-C ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumperBack Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4 USB Type-C port (DisplayPort)
1 x USB4 USB Type-C port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacksI/O Controller
iTE I/O Controller ChipH/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detectionBIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash PlusBundled Software
Norton Internet Security (OEM version)
LAN bandwidth management softwareOperating System
Support for Windows 11 64-bitForm Factor
E-ATX Form Factor 30.5cm x 26.4cmItem Dimension (L"xW"xH")
14 x 12 x 4
Weight
7.65 lbs
Warranty Information
3 years
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.4" |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| DisplayPort | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 10 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 1 TB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | TRX50 AERO D AI ERA MOTHERBOARD HEDT motherboard designed for AI, content creation scientific computing VRM Breakthrough performance, more possibility | Revolutionary Power Design The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen Threadripper CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders. Digital VRM Design Ensures stable high-power delivery for exceptional performance. 16 VCORE Phases 108A SPS to unleash the full potential of multi-core CPU performance. 8 SOC Phase SPS + DrMOS for CPU integrated GPU performance and memory control. 4 MISC Phases 108A SPS provide stable power for CPU-connected PCIe lanes. THERMAL Advanced thermal With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid. VRM Thermal Armor Advanced These solid heatsinks are forged to keep your system cool. M.2 Thermal Guard The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Smart Fan6 Cool. Quiet. Customized. Memory Leading DDR5 Performance | Maximum Capacity TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc.. DDR5 Overclocking Up to 7800 MT/s DDR5 BIOS Engineering Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance. DDR5 Auto Booster one click to boost native DDR5-4800 to 5000 High Bandwidth one click to increase DDR5 bandwidth Low Latency one click to shorten DDR5 latency AMD EXPO/ Intel XMP 3.0 User Profile optimizes memory settings and achieve the best performance for the system SCALABILITY Ultimate scalability Brings you the future-proofing capatiblity Triple PCIe x 16 slots for Multi-GPU Triple slot width design 4X M.2 slots with EZ-latch Click Mega connectivity Dual USB4 Type-C Wi-Fi 7 Ultra-high Gain Antenna Dual LAN 10G+2.5G True Hi-Fi Music DIY-friendly Build effortless Building your own PC is meant to be joyful and effortless. TRX50 AERO D, the most DIY-friendly ever. EZ-Latch Designs Effortless mechanisms that enable easy installations of components. Quick Control Elements Reset. Update. Convenient. Ultra Durable Get everything GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger. |
| Product Type | Desktop Motherboard |
| Product Name | TRX50 AERO D Desktop Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | TRX50AEROD |
| Product Model | TRX50 AERO D |
| Product Line | Ultra Durable |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported | Ryzen Threadripper PRO |
| Total Processor Supported | 1 |
| Processor Socket | Socket sTR5 |
| Chipset Model | TRX50 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth | Yes |
| 10Gigabit Ethernet | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 2.0 |
