Hall Research

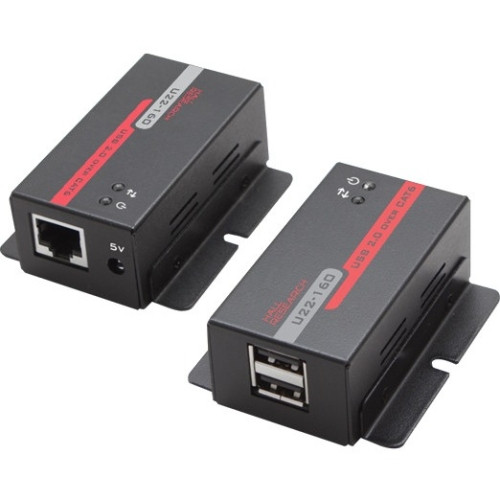

Hall Research USB 2.0 over UTP Extender with 2-Port Hub U22160
- SKU:
- 20781659
- MPN:
- u22-160
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/25/2026 02:25:59 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $132.66 each 132.66 |
- Stock Update:
- 08/25/2026 02:25:59 AM PST
Description
This item is brand-new, factory sealed.
The U22-160 extends your host PC's USB 2.0 port across a single Cat5e/6 cable to 50 meters (165 ft) with data rates up to 480 Mb/s.
In most instances, no power supply is needed for either side as the local (host) side gets its power from the PC and it sends PoC (Power-over-Cable) to the remote (device) side. However for convenience a power supply is included that can be plugged in to the remote end for power hungry USB devices. The remote end has a two port hub built-in to allow connection of 2 USB Devices. The U22-160 is a perfect solution for industrial and commercial applications.
This product can be used to extend a broad range of USB devices like webcams, printers, keyboards, and disk drives up to 165 ft (50 m) using single Cat 5/6 cable.
Package Contents:
- 1 x U22-160 Local Unit
- 1 x U22-160 Remote Unit
- 1 x USB A to B Cable for Local Unit
- 1 x Universal Power Adapter
- 1 x User Manual (UMA1254)
Features
- 1 x U22-160 Local Unit
- 1 x U22-160 Remote Unit
- 1 x USB A to B Cable for Local Unit
- 1 x Universal Power Adapter
- 1 x User Manual (UMA1254)
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Height | 0.9" |
| Width | 1.3" |
| Depth | 2.5" |
| Interfaces/Ports | |
| Number of USB Ports | 3 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| General Information | |
| Brand Name | Hall Research |
| Manufacturer Website Address | http://www.hallresearch.com |
| Marketing Information | The U22-160 extends your host PC's USB 2.0 port across a single Cat5e/6 cable to 50 meters (165 ft) with data rates up to 480 Mb/s. In most instances, no power supply is needed for either side as the local (host) side gets its power from the PC and it sends PoC (Power-over-Cable) to the remote (device) side. However for convenience a power supply is included that can be plugged in to the remote end for power hungry USB devices. The remote end has a two port hub built-in to allow connection of 2 USB Devices. The U22-160 is a perfect solution for industrial and commercial applications. This product can be used to extend a broad range of USB devices like webcams, printers, keyboards, and disk drives up to 165 ft (50 m) using single Cat 5/6 cable. |
| Product Type | USB Extender |
| Product Name | USB 2.0 over UTP Extender with 2-Port Hub |
| Manufacturer | Hall Research |
| Manufacturer Part Number | U22-160 |
| Technical Information | |
| Maximum Data Transfer Rate | 60 MB/s |
| Maximum Extended Range | 164.04 ft |
