HighPoint Low-Profile bootable NVMe RAID Controller SSD7202

This item is brand-new, factory sealed.

New Low-Profile Bootable NVMe Solution for Linux Windows
Ideal for compact, low-profile 1 2U servers, or workstation
Flexible solution: compatible with PCIe x8 and x16 slots
Up to 2 off-the-shelf M.2 MLC, TLC QLC NVMe SSDs
RAID 0, 1, single disk
Dedicated PCIe 3.0 x8 bus bandwidth
Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
The Industrys 1st Low-Profile, Bootable NVMe RAID Controller for Windows Linux
HighPoints third-gen SSD7202 is the industrys first is ultra-compact, low-profile, bootable NVMe RAID solution for Windows and Linux platforms, and can deliver nearly7,000MB/s of transfer performance from a pair of off-the-shelf M.2 SSDs. Each SSD7202 controller benefits from our industry-leading NVMe RAID architecture, and can support striping, mirroring or single disk configurations for up to 2 M.2 NVMe SSDs.
3rd Generation NVMe Architecture
Our third-generation NVMe architecture utilizes our Smart-Switching PCIe 3.0 x8 host interface to ensure broad compatibility with a wide range of hardware platforms without compromising performance the dedicated x8 bandwidth enables the SSD7202 to maximize transfer speeds for up to two M.2 SSDs.
The SSD7202 also features a unique, two-stage cooling solution a card-length heat sink with integrated low-noise fan ensures the NVME SSDs and critical chipset components remain cool even under load.
Comprehensive Boot Capability
The dual M.2 channels can support individual boot drives or a bootable RAID array. Customers can easily tune the NVMe configuration for maximum performance or security.Product Information
Bus Interface
PCI-Express 3.0 x16 (upwards compatible with PCIe 4.0)
Number of Channel / Port
2x M.2 NVMe port (Dedicated PCIe 3.0 x4 per port)
Data Transfer Rates
8GT per lane / 8Gbps per lane
Number of Devices
2x M.2 NVMe SSD
SSD Form Factor
2242 / 2260 / 2280
Form Factor
Low profile
Operating System
Windows 10
Windows Server 2016 or later
Linux Kernel 3.10 or later
Microsoft Hyper-V Xen Server 7.6 and later
Cooling
Full-Length heat sink with integrated Low-Noise fanNVMe Configurations
RAID Support
Single,RAID 0, 1
TRIM RAID Support
Single,RAID 0, 1
Storage Mode - NVMe
Bootable and Data RAIDNVMe RAID Management
Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Auto resume incomplete rebuilding after power on or reboot system
Yes
Single-RAID or Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution Across Controllers
YesOperating Environment
Work Temp
+5^oC - + 55^oC
Storage Temp
-20^oC - +80^oC
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 8W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
CE, FCC, RoHS, REACH, WEEEKit Contents
SSD7202

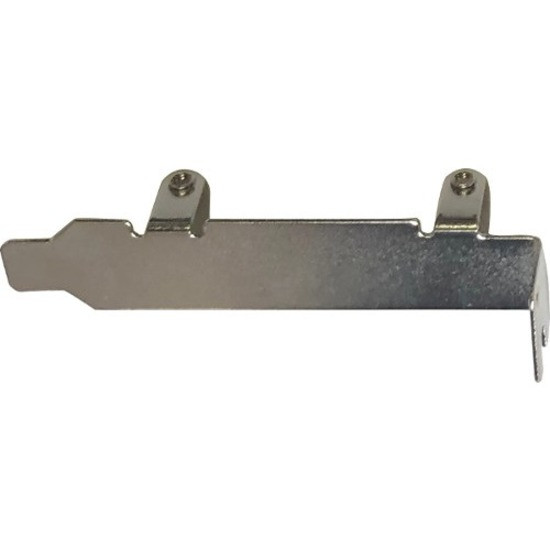

Low-Profile bracket
QIG (Quick Installation Guide)Item Dimension (L"xW"xH")
14 x 8 x 3

Weight
3 lbs

Warranty Information
2 Years

Package Contents:

• Low-Profile Bootable NVMe RAID Controller
• Low-Profile Bracket
• QIG (Quick Installation Guide)
