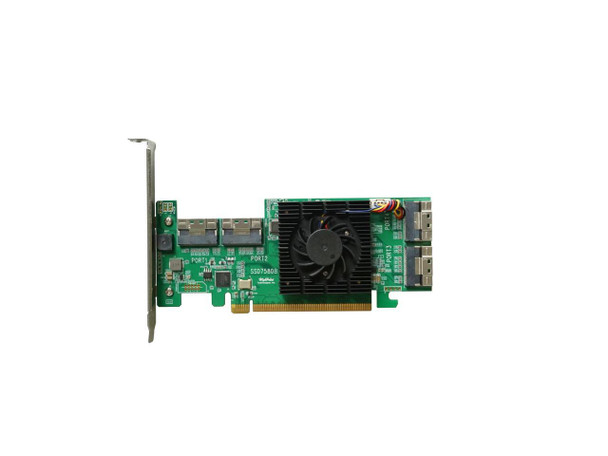

Highpoint Tech 262436 Highpoint Cc Ssd7580b 8pt Pcie4.0 X16 8x U.2 Ports Nvme Raid Controller Rtl
(No reviews yet)
Write a Review
- SKU:
- 18966002
- MPN:
- 262436
- Availability:
- Out of stock
- Stock Update:
- 04/30/2025 05:55:06 PM PST
- Stock Update:
- 04/30/2025 05:55:06 PM PST
Description
This item is brand-new, factory sealed.
The SSD7580B is the industrys fastest single-card PCIe Gen4 NVMe RAID Solution. The dedicated PCIe 4.0 x16 host interface and 8 independent device channels are capable of supporting over 100TB of hot-swappable NVMe storage, at speeds up to 28,000MB/sKey Features
Dedicated PCIe 4.0 x16 host interface
8x U.2 or M.2 NVMe PCIe 4.0 SSDs
True NVMe Hot-Swap Capability (Surprise Add or Remove)
Supports over 100TB of storage at 28,000MB/s
Versatile Cabling Solutions: SFF-8639, SFF-8643 and SFF-8611 (Oculink)
Compact, Half-Height form factorProduct feature
SSD7580B
Bus Interface
PCI-Express 4.0 x16
Number of Channel / Port
8x U.2 NVMe port (SFF-8654 Dedicated Dual PCIe 4.0 x4 per port)
Data Transfer Rate
16GT/s
Number of device
8x U.2 NVMe SSD
SSD Form Factor
2.5" U.2
Form Factor
Low ProfileSupported Operating Systems
Windows
Windows 11 and 10, Windows Server 2022/Server 2019/Server 2016/Server 2012 R2, Microsoft Hyper-V Only supports 64 bit operating system.
Linux
RHEL/Debian/Ubuntu/Fedora/Proxmox/Xenserver (Linux kernel 3.10 and later) Arch linux(Kernel 5.17.5 and above) Only supports 64 bit operating system.System Requirements
Mac Platforms:
Not supported
PC Platforms:
Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required). Note: PCIe 4.0 required for maximum performance.
Secure Boot(PC platforms)
Windows : Support Secure Boot Disable and Enable(Please download the UEFI driver corresponding to Secure Boot on the software download page)
Linux : Support Secure Boot disable
Hotplug
Yes
Cooling System
Anodized Aluminum Heat sink with built-in Low-Noise fanNVMe Configurations
RAID Support
Single (single-disk), RAID 0, 1, 10
TRIM RAID Support
Single (single-disk), RAID 0, 1, 10Storage Mode - NVMe
Data RAID (Non-Bootable)
Windows,Linux
Boot RAID
Windows: Windows10, 11 Windows Server 2016,2019,2022
kernel3.10 and later
Mac: Not supportNVMe RAID Management
Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Auto resume incomplete rebuilding after
Yes
Single-RAID or Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution Across Controllers
Yes (Windows,Linux)Advanced RAID features
Flash ROM for Upgradeable UEFI
Yes
Bootable RAID Array
Yes
Multiple RAID Partitions supported
Yes
Online Array Roaming
Yes
RAID Quick Initialization for fast array setup
Yes
Global Hot Spare Disk support
YesOperating Environment
Work Temp
+5oC - + 55oC
Storage Temp
-20oC - +80oC
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 13.72W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
CE, FCC, RoHS, REACH, WEEEKit Contents
1x SSD7580B
1x Quick Installation Guide
1x Low-Profile bracketItem Dimension (L"xW"xH")
7 x 8 x 2
Weight
1 lb
Warranty Information
2 Years
Package Contents:
- SSD7580B PCIe Gen4 U.2 NVMe RAID Controller
- 1 x Quick Installation Guide (QIG)
- 1x Low-Profile bracket
Features
Package Contents:
Yes
- SSD7580B PCIe Gen4 U.2 NVMe RAID Controller
- 1 x Quick Installation Guide (QIG)
- 1x Low-Profile bracket
Environmentally Friendly:
Yes
Platform Supported:
PC
Linux
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 10.24 oz |
| Height | 2.3" |
| Width | 6.5" |
| Depth | 0.8" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | HighPoint |
| Manufacturer Website Address | http://www.highpoint-tech.com |
| Marketing Information | True NVMe Surprise Add and Remove Capability! The SSD7580B Incorporates True NVMe Surprise Add & Remove Capability Hot-Swap capability a true boon for NVMebased storage solutions, and is especially useful for servicing NVMe storage solutions and appliances in the field. Hot-swap can significantly reduce or even eliminate the need for downtime. The SSD7580B allows administrators to add remove or replace NVMe SSDs without powering down the host platform, on the fly. NVMe drives, though considerably more reliable than their platter counterparts, still must be replaced on a regular basis when employed by many datacenter or industrial applications, where storage devices are expected to remain active for extended periods of time, including truly grueling 24/7/365 workflows. NVMe media's one weakness is the finite write cycle; M.2 SSDs in particular can rapidly reach their TBW limitations in such environments. TBW expiration requires disk replacement, which results in downtime - this is the advantage of hot-swap capability. True Hot-Swap: Not just Hot-Plug or Hot Replaceable In the past, replacing an NVMe SSD meant powering down the entire system. More recent solutions may employ Hot-Plug capability; the ability to recognize drives added for specific tasks- such as rebuilding an array, or support Hot-Replaceable drives; an unused SSD that is already connected to the controller can be used to rebuild an array). However, both of these methods still require a restart in order for the operating system to recognize the hardware changes. However, the SSD7580B's hot-swap capability works exactly like you expect it to. The SSD7580B allows customers to add or remove drives on the fly, as necessity demands. This includes RAID and single-drive configurations. The controller will notify the system of any changes in real time - no reboot is required. The host system can remain active throughout the procedure. Versatile Cabling Options: Hot-Swap Enabled The SSD7580B's Hot-Plug capability works with a variety of industry standard connectors - not just SFF-8639, which is employed directly by U.2 media. We offer a selection of PCIe Gen4 capable cabling accessories capable of supporting hot-swappable storage configurations, including SFF-8643 connections and SFF-8611 Oculink backplanes. This allows the SSD7580B to support any industry standard U.2 or M.2 NVMe SSD. Cross-Sync Compatible - Double Your Storage Capability In addition to Hot-Swap support, the SSD7580B is Cross-Sync compatible. This enables customers to configure dual SSD7580B controllers to function as a single RAID device, and support up to 16 U.2/M.2 NVMe SSDs in one or more RAID arrays. Such combinations are capable of supporting truly extreme levels of performance and storage capability - over 200TB of storage @ 40,000 MB/s! |
| Product Type | NVMe Controller |
| Product Name | SSD7580B PCIe Gen4 U.2 NVMe RAID Controller |
| Manufacturer | HighPoint Technologies, Inc |
| Manufacturer Part Number | SSD7580B |
| Product Model | SSD7580B |
| Product Series | SSD7580 |
| Packaged Quantity | 1 |
| Technical Information | |
| RAID Supported | Yes |
| Operating System Supported |
|
| Number of Channels | 8 |
| Host Interface | PCI Express 4.0 x16 |
| RAID Levels |
|
