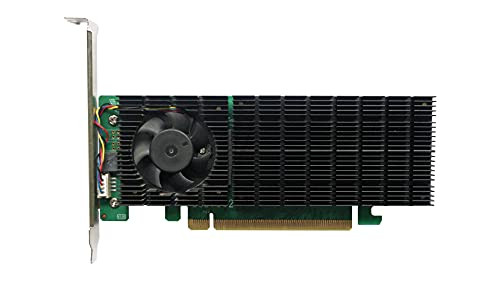

Highpoint Technologies SSD7502 PCIe 4.0 x16 Dual M.2 NVMe RAID Controller

This item is brand-new, factory sealed.

• Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solution / PCIe Gen3 compatible
• 2x M.2 NVMe PCIe 4.0 SSDs
• Low-Noise Gen4 Hyper-Cooling Solution
• Integrated SSD TBW and temperature monitoring capability
• Bootable RAID Support for Windows and Linux

• Brand: ?HighPoint Technologies
• Item model number: ?SSD7502
• Item Weight: ?13.1 ounces
• Product Dimensions: ?0.8 x 6.57 x 2.72 inches
• Item Dimensions LxWxH: ?0.8 x 6.57 x 2.72 inches
• Manufacturer: ?HighPoint Technologies, Inc.

Industry's Fastest Dual-Port PCIe NVMe RAID Controller: The SSD7502 is the industry's fastest Dual-Port PCIe Gen4 RAID controller, & features bootable RAID support for Windows and Linux based platforms. The low-profile SSD7502 incorporates a state of the art Gen4 PCIe Switch Chipset to ensure each M.2 port has x4 lanes of dedicated bandwidth. Cutting-Edge PCIe Gen4 High-Speed Intelligent Switch Chipset: The SSD7502 incorporates Broadcom's Next-Gen PCIe 4.0 switch chipset, which ensures maximum transfer bandwidth is available for each device port, at all times. The SSD7502 is capable of delivering up to 14,000MB/s of transfer performance using just two Gen4 M.2 NVMe SSD'S! Universal Compatibility: The SSD7502 can be installed into any computing platform with an industry-standard PCIe 4.0 or 3.0 x16 slot. Like all SSD7500 series NVMe RAID controllers, the SSD7502 does not require a host platform with Bifurcation support, & is not dependent on a specific brand or model of motherboard. Bootable RAID Solution for Linux & Windows: The SSD7502 can be used to configure bootable RAID or single NVMe SSD configurations for Windows & Linux systems. Optional UEFI downloads & complete installation guides are available for each supported platform. RAID 0 (Rapid Boot) - Also known as a stripe array, this mode delivers Maximum Performance and capacity by linking multiple NVMe SSD's together to act as a single storage unit. RAID 1 (Secure Boot) - This mode creates a hidden duplicate of the target SSD, and is ideal for bootable volumes. Gen4 Hyper-Cooling System: Ultra-Efficient, low-Noise Cooling Solution designed specifically for Gen4 NVMe SSD's. Maximizing Gen4 NVMe storage performance without the proper implementation of modern cooling apparatus is a risky proposition. PCIe 4.0 devices and NVMe SSDs generate considerable heat under heavy load. To combat the threat of overheating, SSD7500 Series RAID controllers are equipped with our innovative Gen4 NVMe Hyper-Cooling System, which combines an anodized aluminum heat sink, ultra-durable near-silent fan and high-conductivity thermal pad. "Hyper-Cooling" refers to this unique design's ability to rapidly transfer waste heat away from critical NVMe and controller componentry to ensure your NVMe SSDs consistently operate within their recommended temperature thresholds, even under sustained heavy I/O.
