Description

This item is brand-new, factory sealed.

Includes: (1) ICMPP125EV Cat5e Vertical 12 Port Patch Panel 6 Pack

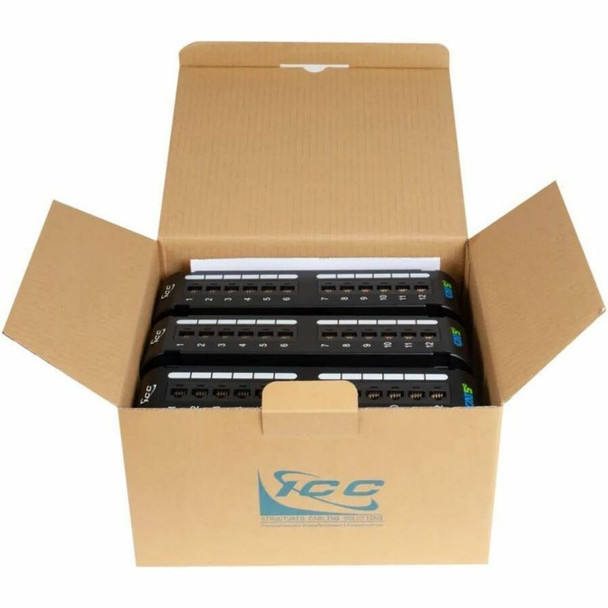

Packaged 6 in a box

Wall mounted CAT 5E component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals

Exceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirements

Engineering to provide 110 IDC termination reducing installation time

Includes both TIA-568A and TIA-568B color wiring diagrams

Backwards compatible to all lower rated category components

UL listed

Front Port Connection:Cat5e

Number of Ports:12

Patch Panels:Vertical

Rear Port Connection:110-Type

Package Contents:

Features

Package Contents:

TAA Compliant:
Yes

Environmentally Friendly:
Yes

Country of Origin:
Taiwan

Specs

Physical Characteristics
Product Material	ABS Plastic Phosphor Bronze
Form Factor	Wall Mountable
Product Color	Black Powder Coat
Height	10"
Color Family	Other
Width	3.3"
Depth	2.4"
Warranty
Limited Warranty	3 Year
Interfaces/Ports
Total Number of Ports	12
Number of Network (RJ-45) Ports	12
General Information
Brand Name	ICC
Manufacturer Website Address	http://www.icc.com
Marketing Information	Exceeds TIA CAT5e standards. A flexible solution suitable for use as a consolidation point 10" H x 2.50" W x 2.38" D Comes with a removable 89D universal mounting bracket.
Product Type	Network Patch Panel
Product Name	CAT5e Vertical Patch Panel with 12 Ports in 6-Pack
Manufacturer	ICC
Manufacturer Part Number	ICMPP125EV
Technical Information
Twisted Pair Cable Standard	Category 5e
Power over Ethernet+ (PoE+)	Yes
