ICC 28" Plastic Wiring Enclosure Voice, Data, and Video Combo with Doors [Model K] (icresdp28k)

This item is brand-new, factory sealed.

ICC's 28-inch residential wiring enclosure with doors is designed for single-family homes with a wireless network. It serves as the central distribution point for voice, data, video, audio, and security services. The enclosure and doors are made with sturdy ABS plastic to prevent cracking. The plastic is lightweight to allow better Wi-Fi signal and coverage. The enclosure has a universal mounting pattern to accommodate ICC's and most manufacturers' active modules. The doors are vented to dissipate heat and reversible to swing open left or right. The beveled frame of the door screws down to cover drywall edges. The Voice Module has 8 ports, up to 4 incoming phone lines, up to 32 extensions, and two built-in ports: RJ-31X and Expansion. ICC's Data Modules are TIA® Category 6 rated with 8-ports, and are for broadband internet access to 8 computers or Ethernet devices. Video modules include 1 input, 6 outputs, and 2GHz bandwidth.

Features

• 0.1-inch thick plastic enclosure.
• Mount between 16-inch wall studs or on a wall.
• Modules are packaged separately for subsequent installation.
• Modules can snap in horizontally and vertically.
• Sixteen module mounting spaces.

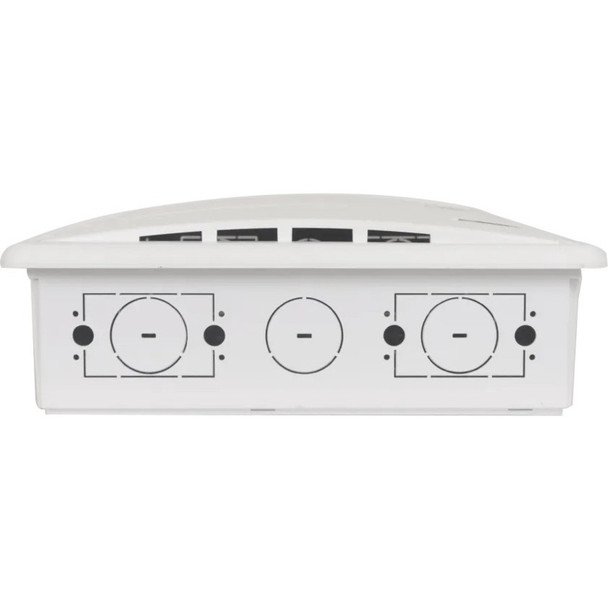

• Removable cable entry knockouts; three on top and three on the bottom.
• Eight built-in cable tie points.
• Removable knockouts for four AC power outlets (not included) to provide power distribution.

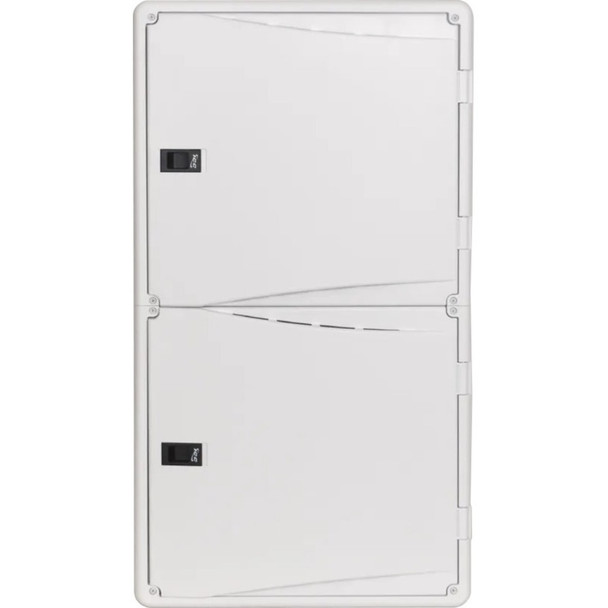

• Vented front doors.
• Complies with UL 1863, TIA-568-C, TIA-570-B, and TIA-607 standards.
• UL® 94V-0 safety rated.

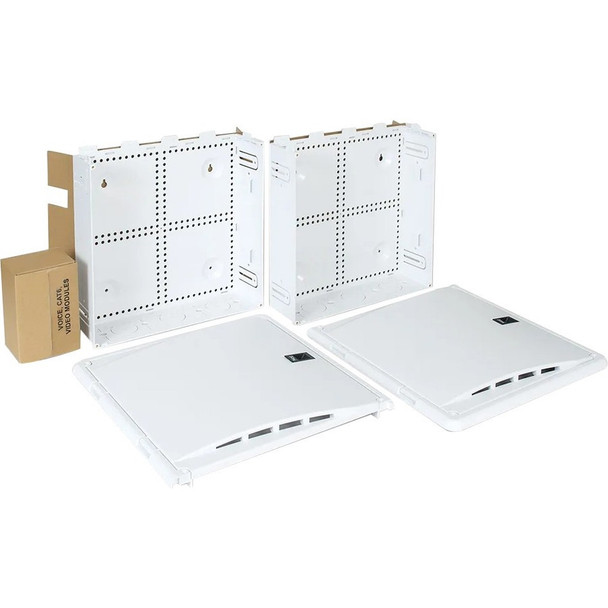

• 2 x 28" Plastic Net Media Center
• 2 x Net Media Center Door
• 2 x Cardboard Protective Cover
• 1 x CAT 6 Module, Data, 8- Port
• 1 x Telephone Module, 8-Port w/RJ31X
• 1 x Resi Module, 2 GHz Video Splitter, 16
• 8 x 6-18 x 3/4" , Nickel Plated, Pan Head Phillips, Self-Tapping Screw
• 4 x 10-16 x 1" Zinc Plated, Flat HeadPhillips, Wood Screw
• 1 x Wiring Location Sheet
• 1 x Protective Cover
