ICC Mounting Box for Fiber Optic Cassette, Adapter Panel (icfode41wm)

This item is brand-new, factory sealed.

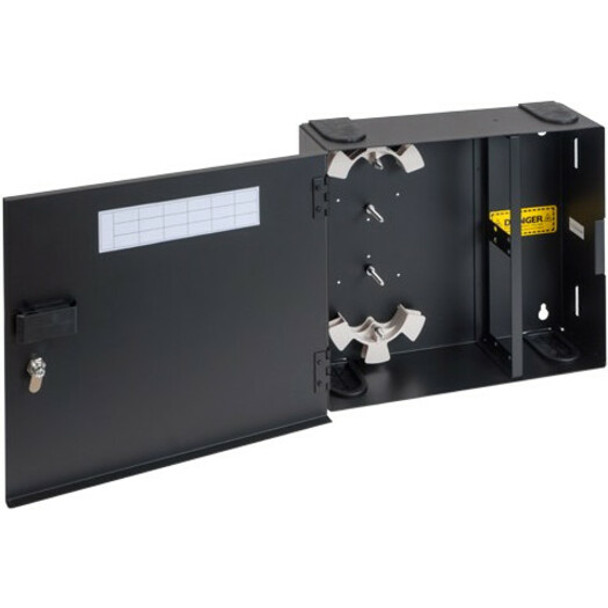

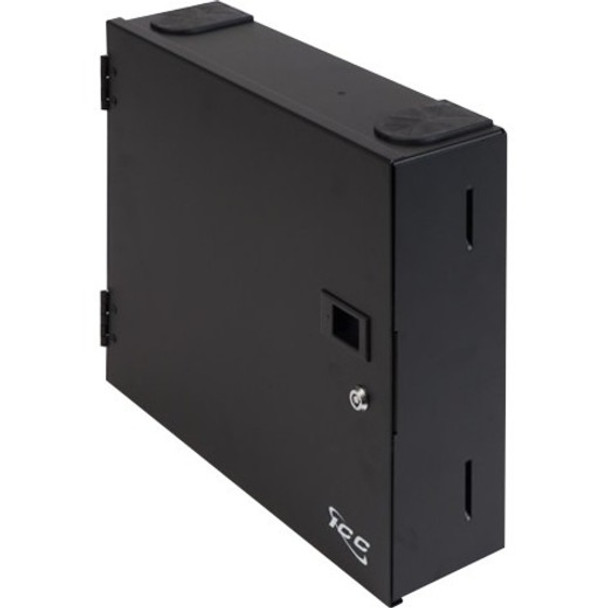

ICC's 4-Panel wall mount fiber optic enclosure is designed to provide a distribution point to feed a high capacity of fiber optic cables to other closets or zones. The enclosure can be mounted onto walls and in remote indoor locations. It can hold a total of four LGX® compatible products; such as adapter panels and MPO cassettes. It can support patching for up to 96 LC, 48 SC or 24 ST fiber optic connections. The enclosure has a swing-out door with a padded lock and key for security. The door also comes with a wiring label for system administration. There are openings on the top and bottom for cable to enter and exit. ICC's wall mount enclosure provides a safe and clean environment for fiber. ICC's wall mount fiber enclosure can hold up to one 12 fiber splice tray. It is made with 18 gauge steel, black power-coated, and meets and exceeds all TIA-568-C.3 requirements.

Features

• Top and bottom cable entry.
• Provides easy access to manage fiber optic cable.
• Made of cold-rolled steel.
• Folded edge to increase strength.
• LGX® compatible.
• Holds 4 Fiber Optic Adapter Panels or MPO Cassette
• Accepts 3 Splice Trays.
• Cable management spools and rubber grommets come pre-installed into the enclosure.

Specifications

Material:
Enclosure: 18 GA CRS
Adapter Bulkhead: 16 GA CRS
Surface Finish: Black Powder Coating

• 1 x 4-Panel Wall Mount Enclosure
• 4 x Cable Management Spool
• 4 x M5-0.8 Nut
• 4 x Hook and Loop Ties
• 2 x Key
• 1 x Location Identification Label
• 1 x Danger Label
• 1 x Installation Instructions
• 4 x Rubber Grommet
