Icy Dock 256978 Ac Mb987m2p-1b Ezconvert Ex Pro 1xm.2 Nvme Ssd To Pcie 3.0 X4 Adapter
- SKU:
- 18383913
- MPN:
- 256978
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/20/2024 09:16:32 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $48.92 each 48.92 |
- Stock Update:
- 05/20/2024 09:16:32 PM PST
Description
This item is brand-new, factory sealed.

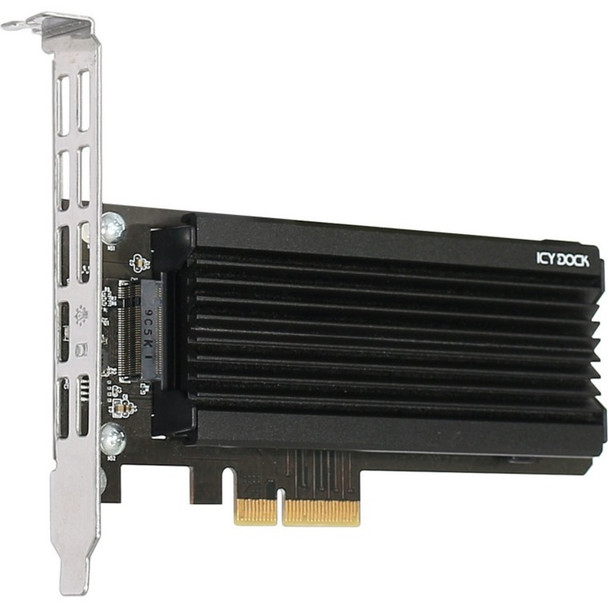

The EZConvert Ex Pro MB987M2P-1B provides an efficient, cost-effective, and simple way to upgrade your data storage system to high-speed M.2 PCIe NVMe SSD through PCIe 4.0 x4 / x8 / x16 expansion slot.
Space-Saving Design
Utilizing the PCIe expansion slot, the MB987M2P-1B lets you install a M.2 PCIe NVMe SSD on the PCIe slot to save space. MB987M2P-1B is a perfect solution for systems that lack additional drive space, such as embedded computers, in-vehicle PCs, server rackmounts, compact gaming PCs, and workstation PCs.
State of the Art Tool-less Drive Installation
The EZConvert Ex Pro accommodates all standard M.2 PCIe NVMe SSD drive length, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm). The unique M.2 adjustable locker clips into the M.2 SSD's screw hole to safely secure the drive without using tools or screws, saving you the time of dealing with tiny easy-to-lose screws while protecting your drive from vibration and movement damage.
Perfect Solution for Next-Gen PCIe SSD
The PCIe 3.0/4.0 interface provides power and data transfer simultaneously, which ultimately reduces cable clutter in the system. The blazing-fast PCIe 4.0 x4 offers 64Gb/s transfer speed is 10 times faster than SATA III standards, making the MB987M2P-1B an ideal solution for data-intensive applications such as image processing, machine learning, cloud computing, data mining, and gaming.
The EZConvert EX Pro MB987M2P-1B is designed for the PCIe 4.0 x4 slot. It is also compatible with PCIe 4.0 x8, and x16 slots.
Optimal Cooling
The specialized aluminum lid acts as a heat sink to keep M.2 NVMe SSD at safe temperatures, even under heavy load.
The included thermal pad can be placed on the aluminum heatsink lid's underside for enhanced heat dissipation.
The large ventilation cut out underneath the M.2 SSD provides maximum airflow throughout the drive offers optimal cooling efficiency.
Support Different System Heights
The PCIe slot bracket of the MB987M2P-1B can be swapped between full and low profile for flexible system installation. If you have a need to customize the units by swapped an aftermarket low profile PCIe bracket (not included), go right on ahead --we've added the necessary screw hole spacing for this purpose.
Packed with Features
The MB987M2P-1B is equipped with drive activity LED indicator that shows the drive power and activity. The LED is automatically powered off when no drive is installed to save power.
The optional 2-pin drive activity signal output (cable not included) allows you to transfer the drive activity signal to the front panel of the computer to monitor the drive activity.
Package Contents:
- EZConvert Ex Pro MB987M2P-1B M.2 to PCI Express Adapter
- User Manual
- Thermal Pads
Features
- EZConvert Ex Pro MB987M2P-1B M.2 to PCI Express Adapter
- User Manual
- Thermal Pads
Certifications & Standards:
CE
Additional Information:
- Support SSD Capacity : No Limitation
- Support Drive Size : 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
- Compatible Drive Type : NVMe
- Number of Drives : 1
- Support Drive Length : 30mm - 110mm
- Drive Bay : 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
- Host Interface : PCIe 3.0/4.0 x4
- Power Input : Via PCIe
- Transfer Rate : PCIe 3.0 up to 32Gbps / PCIe 4.0 up to 64Gbps (Depending on SSD Speed)
Environmentally Friendly:
Yes
Compatibility:
Support Drive Length : 30mm - 110mm
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 4.42 oz |
| Product Color |
|
| Height | 0.9" |
| Width | 6.4" |
| Depth | 4.8" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | Icy Dock |
| Manufacturer Website Address | http://www.icydock.com |
| Marketing Information | The EZConvert Ex Pro MB987M2P-1B provides an efficient, cost-effective, and simple way to upgrade your data storage system to high-speed M.2 PCIe NVMe SSD through PCIe 4.0 x4 / x8 / x16 expansion slot. Space-Saving Design Utilizing the PCIe expansion slot, the MB987M2P-1B lets you install a M.2 PCIe NVMe SSD on the PCIe slot to save space. MB987M2P-1B is a perfect solution for systems that lack additional drive space, such as embedded computers, in-vehicle PCs, server rackmounts, compact gaming PCs, and workstation PCs. State of the Art Tool-less Drive Installation The EZConvert Ex Pro accommodates all standard M.2 PCIe NVMe SSD drive length, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm). The unique M.2 adjustable locker clips into the M.2 SSD's screw hole to safely secure the drive without using tools or screws, saving you the time of dealing with tiny easy-to-lose screws while protecting your drive from vibration and movement damage. Perfect Solution for Next-Gen PCIe SSD The PCIe 3.0/4.0 interface provides power and data transfer simultaneously, which ultimately reduces cable clutter in the system. The blazing-fast PCIe 4.0 x4 offers 64Gb/s transfer speed is 10 times faster than SATA III standards, making the MB987M2P-1B an ideal solution for data-intensive applications such as image processing, machine learning, cloud computing, data mining, and gaming. The EZConvert EX Pro MB987M2P-1B is designed for the PCIe 4.0 x4 slot. It is also compatible with PCIe 4.0 x8, and x16 slots. Optimal Cooling The specialized aluminum lid acts as a heat sink to keep M.2 NVMe SSD at safe temperatures, even under heavy load. The included thermal pad can be placed on the aluminum heatsink lid's underside for enhanced heat dissipation. The large ventilation cut out underneath the M.2 SSD provides maximum airflow throughout the drive offers optimal cooling efficiency. Support Different System Heights The PCIe slot bracket of the MB987M2P-1B can be swapped between full and low profile for flexible system installation. If you have a need to customize the units by swapped an aftermarket low profile PCIe bracket (not included), go right on ahead --we've added the necessary screw hole spacing for this purpose. Packed with Features The MB987M2P-1B is equipped with drive activity LED indicator that shows the drive power and activity. The LED is automatically powered off when no drive is installed to save power. The optional 2-pin drive activity signal output (cable not included) allows you to transfer the drive activity signal to the front panel of the computer to monitor the drive activity. |
| Product Type | M.2 to PCI Express Adapter |
| Product Name | EZConvert Ex Pro MB987M2P-1B M.2 to PCI Express Adapter |
| Manufacturer | Icy Dock |
| Manufacturer Part Number | MB987M2P-1B |
| Product Model | MB987M2P-1B |
| Product Line | EZConvert Ex Pro |
