Icy Dock MB994IPO-3SB 2.5 Sata Sas Hdd Ssd Backplane
- SKU:
- 18049692
- MPN:
- mb994ipo-3sb
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/05/2024 07:51:31 PM PST
- Stock Update:
- 05/05/2024 07:51:31 PM PST
Description
This item is brand-new, factory sealed.

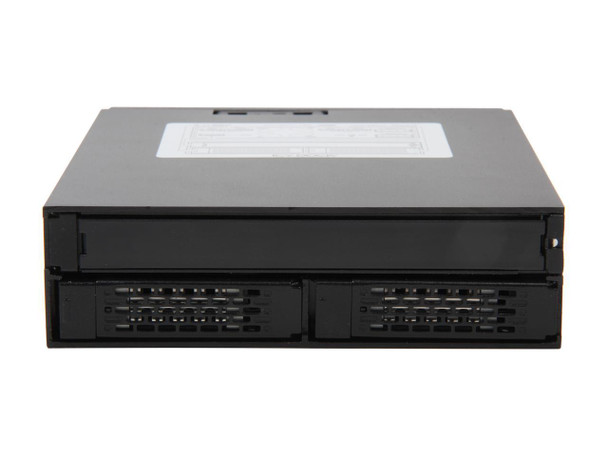

Introducing the MB994IPO-3SB, a full metal dual bay 2.5 SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single 5.25 device bay. Its a perfect device designed for small form factor system or server such as: IPC, HTPC, NAS, Home Servers and All-In-One computers. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5 SATA SSDs or power hungry 15000 RPM 2.5 SAS drives. Also included is a single 40mm cooling fan with on off switch to assist the drives running at their optimal temperatures, in even the most intense applications.The MB994IPO-3SB separates itself from the rest of the MB994 series by the unique Slim Optical Disk Drive slot that is available. The Slim ODD slot uses our EZ-ODD Tray made of full metal, and is easily removable by use of the provided key or via a side latch. This allows system integrators more freedom to better meet their potential clients needs.

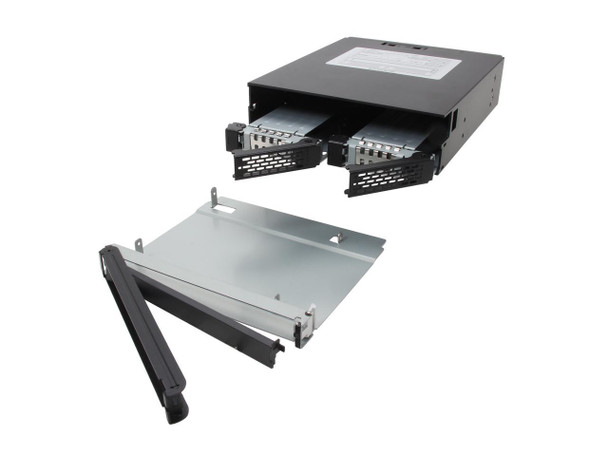

The MB994IPO-3SB utilizes our EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using full metal so that they are durable for many lifetimes, while will not weigh you down when transporting your data from system to system. Also featuring a full cage design, the added top drive cover provides added layer of protection while moving the drive. The trays are designed to accommodate 9.5mm, 12.5mm 15mm drives, giving you excellent control of your 2.5" hot swap backplane. Model Number :
MB994IPO-3SB Color :
Matt Black Host Interface :
7 pin SATA x 4 Drive Fit :
2.5" SAS / SATA HDD or SSD x 2
Drive Bay :
Single 5.25" half height device bay Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed) Insert Extract connection Via :
Direct SATA connection Structure :
Aluminum SECC Device Power :

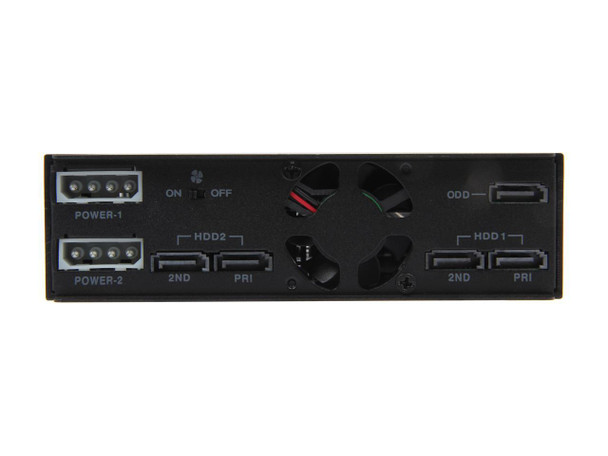

Dual 4 pin Molex power Drive Cooling :
One 40mm rear cooling fan + fan power switch
Power Indicator :
Solid Green LED (Power On) HDD Access Indicator :
Flashing Amber LED Weight
1.78
Item Dimension
7.48 x 6.1 x 2.17
Warranty Information
3 Years
Features
Environmentally Friendly:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Yes
Compatibility:
Accommodate 9.5mm, 12.5mm & 15mm drives
Recycled:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
Physical Characteristics | |
Product Material |
|
Cooling Fan | Yes |
Form Factor | Internal |
Weight (Approximate) | 1.77 lb |
Product Color | Matte Black |
Height | 1.6" |
Compatible Drive Bay Width | 5.25" |
Width | 5.8" |
Depth | 6.7" |
Warranty | |
Limited Warranty | 3 Year |
I/O Expansions | |
Number of 2.5" Bays | 2 |
Number of 5.25" Bays | 1 |
Number of Total Expansion Bays | 3 |
Interfaces/Ports | |
Host Interface | Serial ATA |
Drive Interface |
|
General Information | |
Brand Name | Icy Dock |
Manufacturer Website Address | http://www.icydock.com |
Marketing Information | Introducing the MB994IPO-3SB, a full metal dual bay 2.5" SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single 5.25" device bay. It's a perfect device designed for small form factor system or server such as: IPC, HTPC, NAS, Home Servers and All-In-One computers. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5" SATA SSD's or power hungry 15000 RPM 2.5" SAS drives. Also included is a single 40mm cooling fan with on & off switch to assist the drives running at their optimal temperatures, in even the most intense applications. |
Product Type | Drive Bay Adapter |
Product Name | MB994IPO-3SB 2x 2.5" SATA/SAS HDD/SSD + Slim ODD 5.25" Backplane |
Manufacturer | Icy Dock |
Manufacturer Part Number | MB994IPO-3SB |
Product Model | MB994IPO-3SB |
Product Series | MB994 |
Technical Information | |
Maximum Data Transfer Rate | 6 Gbit/s |
