Insta360 307384 Mm Mic Pro02-mcb10 Mic Pro [1 Tx + 1 Rx] Retail

This item is brand-new, factory sealed.

Insta360 Mic Pro

1 TX + 1 RX

Get the highlights.

Customizable E-Ink Display

Upload custom images, logos, or graphics directly through the Insta360 app, turning the microphone into your personal brand in a snap.

3-Mic Array & Directional Pickup Modes

Insta360 Mic Pro comes with three microphones built in, delivering pro audio quality. Intelligent algorithms enable directional pickup, adapting to any environment.

AI Noise Canceling

Powered by an industry-leading NPU chip with breakthrough AI performance. Enjoy crisp, natural, high?fidelity audio with an advanced noise canceling algorithm.

Insta360 Seamless Connection

No receiver needed. The transmitter directly pairs with Insta360 cameras (X5, Ace Pro 2, GO Ultra, and more) to record high-fidelity 48 kHz audio.

2 TX + 4 RX Capability

One Transmitter pairs with up to four Receivers, delivering perfectly synced audio to four cameras simultaneously, so you can have a quick setup and edit with ease.

Auto Gain Control

Automatically adjusts volume levels based on your voice intensity. No manual gain tweaking required, with two modes for different environments.

32-Bit Float Internal Recording

The Transmitter has the capability to internally record audio using its onboard memory. 32-Bit Float internal recording captures a wide dynamic range, reducing the risk of clipped audio.

30-Hour Extended Battery

Even with so many advanced new features, enjoy up to 30 hours of battery life when using the Transmitter with the included Charging Case.General
Polar Pattern
Omnidirectional
Selectable Pickup Modes
Omnidirectional/Super-directional/Cardioid/Figure-8
Frequency Response
Low Cut Off: 20Hz-20kHz
Low Cut On: 100Hz-20kHz
Microphone Sensitivity
Microphone Capsule: -38+/-1 dBV at 1kHz, 94dB SPL
Signal-to-Noise Ratio (SNR)
72dB (A-weighted)
Maximum Sound Pressure Level (SPL)
130 dB SPL at 10% THD
Sampling Frequency
48kHz
Bit Depth
32-bit float/24-bit
32-bit float only applies to Transmitters internal recordings.
Maximum Input Level (3.5 mm)
-8dBV
Equivalent Noise
22dB (A-weighted)
Monitor Interface Output Power
Max Output Power: 20 mW at 1 kHz32 Omega
Max Transmission Range
400m
400 meters is measured when the Transmitter is connected to the Receiver in an open, unobstructed, and interference-free environment. When the Transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors.Transmitter
Dimensions
38 x 12.2mm (Diameter x H)
Weight
19.7g (Without Clip)
Display
6-Color E-Ink Screen
Size: 1.22
Resolution: 240 x 208
PPI: 197 (Pixels Per Inch)
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400-2.4835GHz: less than or equal 20dBm (FCC/CE/SRRC/MIC)
Wireless Mode Operating Frequency
2.400-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency
2.400-2.4835GHz
Bluetooth Transmitter Power (EIRP)
BLE: less than or equal 20 dBm
BR/EDR: less than or equal 20 dBm
Battery Type
Li-ion
Battery Capacity
240mAh
Battery Energy
0.94Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0^oC to 45^oC
Operating Temperature
-10^oC to 45^oC
Charging Time
Fully charged in approximately 1 hour, 80% in about 24 minutes.
Tested in a lab environment with a 5V/3A charger.
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
Tested in a lab environment with the Transmitters battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Operating Time
10 hours
Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
Onboard Memory
32 GB
Internal Recording Available Duration
24-bit (Mono Internal Recording): 60 hours24-bit (Stereo Internal Recording): 29.7 hours
32-bit (Mono Internal Recording): 44.8 hours
32-bit (Stereo Internal Recording): 22.2 hoursReceiver

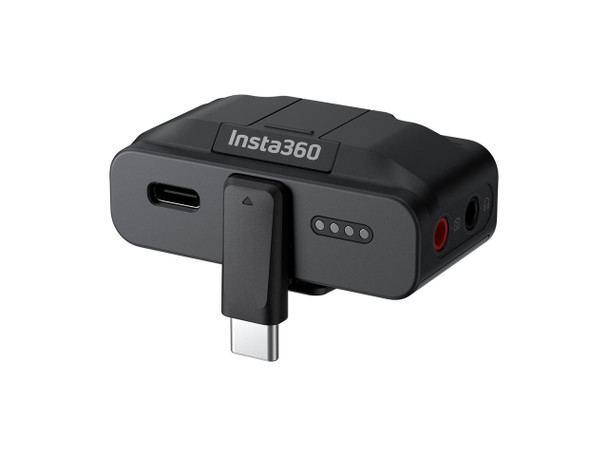

Dimensions
55.80x27.65x21.00 mm (LxWxH)
Weight
29.8g
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400GHz-2.4835GHz: less than or equal 20dBm (FCC/CE/SRRC/MIC)
Operating Frequency
2.400GHz-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency
2.400GHz-2.4835GHz
Bluetooth Transmitter Power (EIRP)
BLE: less than or equal 20 dBm
Battery Type
Li-ion
Battery Capacity
410mAh
Battery Energy
1.60Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0^oC to 45^oC
Operating Temperature
-10^oC to 45^oC
Charging Time
Fully charged in approximately 75 minutes, 80% in about 27 minutes.
Tested in a lab environment with a 5V/3A charger.
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
Tested in a lab environment with the Receivers battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Operating Time
11 hours
Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.Charging Case
Dimensions
122.00x61.90x42.20 mm (LxWxH)
Weight
174g (Charging Case only, without included accessories)
Battery Type
Li-ion
Battery Capacity
2815mAh
Battery Energy
10.951Wh
Battery Voltage
3.89V
Charging Specification
Max 5 V
Charging Temperature
0^oC to 45^oC
Operating Temperature
-10^oC to 45^oC
Operating Time with Charging Case
30 hours
Measured using Insta360 Mic Pro (2 TX + 1 RX), with the Charging Case fully charged, noise cancellation and internal recording on the Transmitters are off. Closerange recording in an interferencefree environment, with both Transmitters connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Charging Time
Approx. 2 hours
Charging Cycles for TX and RX
When charging two Transmitters and one Receiver simultaneously, a fully charged charging case can fully charge them for approx. 2 times.Item Dimension (L"xW"xH")
5 x 5 x 3

Weight
1 lb

Warranty Information
NA
