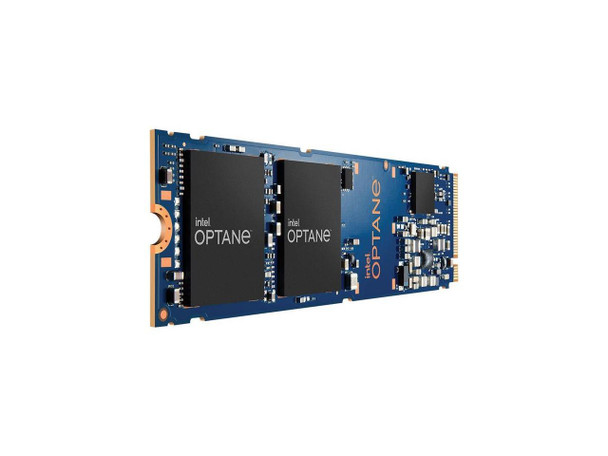

Intel Optane P1600X 118 GB Solid State Drive - M.2 2280 Internal - PCI Express NVMe [PCI Express NVMe 3.0 x4] (255991)
(No reviews yet)
Write a Review
- SKU:
- 18329311
- MPN:
- 255991
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
Intel SSD Optane SSDPEK1A118GA01 P1600X 118GB PCIex4 3D XPoint Brown BoxEssentialsProduct Collection
Intel Optane DC SSD Series
Capacity
118 GB
Use Conditions
Communications Commercial Temp, Embedded Broad Market Commercial Temp, Industrial Commercial Temp, PC/Client/Tablet, Server/Enterprise, WorkstationPerformance Specifications
Sequential Bandwidth - 100% Read (up to)
1760 MB/s
Sequential Bandwidth - 100% Write (up to)
1050 MB/s
Random Read (100% Span)
410000 IOPS (4K Blocks)
Random Write (100% Span)
243000 IOPS (4K Blocks)
Power - Active
5.2W
Power - Idle
Less than 1.7WReliability
Vibration - Operating
2.17 GRMS
Vibration - Non-Operating
3.13 GRMS
Shock (Operating and Non-Operating)
1000 G/0.5 msec
Operating Temperature Range
0oC to 70oC
Operating Temperature (Maximum)
70 oC
Operating Temperature (Minimum)
0 oC
Endurance Rating (Lifetime Writes)
1292 TBW
Mean Time Between Failures (MTBF)
2 million hours
Uncorrectable Bit Error Rate (UBER)
Less than 1 sector per 1017 bits readPackage Specifications
Form Factor
M.2 22 x 80mm
Interface
PCIe 3.0 x4, NVMeAdvanced Technologies
Enhanced Power Loss Data Protection
Yes
High Endurance Technology (HET)
Yes
Temperature Monitoring and Logging
Yes
End-to-End Data Protection
YesItem Dimension (L"xW"xH")
6 x 5 x 1
Weight
1 lb
Warranty Information
5 Years
Features
Device Supported:
Desktop PC
Workstation
Tablet
Thin Client
Server
Specs
| Physical Characteristics | |
| Form Factor | M.2 2280 |
| Length | 3.1" |
| Drive Type | Internal |
| Width | 0.9" |
| Interfaces/Ports | |
| Drive Interface Standard | PCI Express NVMe 3.0 x4 |
| Drive Interface | PCI Express NVMe |
| General Information | |
| Brand Name | Intel |
| Package Type | Bulk |
| Manufacturer Website Address | http://www.intel.com |
| Product Type | Solid State Drive |
| Product Name | Optane SSD P1600X Series (118GB, M.2 80mm PCIe 3.0 x4, 3D XPoint) |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | SSDPEK1A118GA01 |
| Product Series | P1600X |
| Product Line | Optane |
| Packaged Quantity | 1 |
| Drive Performance | |
| Maximum Read Transfer Rate | 1760 MB/s |
| Maximum Write Transfer Rate | 1050 MB/s |
| Random 4KB Read | 410000IOPS |
| Random 4KB Write | 243000IOPS |
| Endurance (TBW) | 1292 TB |
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 118 GB |
