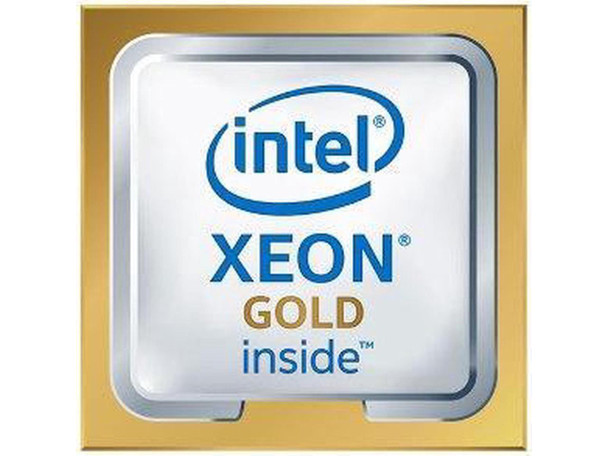

Intel Xeon Gold [4th Gen] 5418Y Tetracosa-core [24 Core] 2 GHz Processor (269546)

This item is brand-new, factory sealed.

Intel CPU PK8071305120301 Xeon Gold 5418Y 24Cores/48Threads 2.0GHz 45MB FCLGA4677 Tray Essentials
Product Collection
4th Generation Intel Xeon Scalable Processors
Code Name
Products formerly Sapphire Rapids
Vertical Segment
Server
Processor Number
5418Y
Lithography
Intel 7 CPU Specifications
Total Cores
24
Total Threads
48
Max Turbo Frequency
3.80 GHz
Processor Base Frequency
2.00 GHz
Cache
45 MB
Intel UPI Speed
16 GT/s
Max Number of UPI Links
3
TDP
185 W Intel Speed Select Technology - Performance Profile (Intel SST-PP)
Config / Active Cores / Base Frequency / TDP / Description
5418Y(0) / 24 / 2 / 185 /
5418Y(1) / 16 / 2.3 / 165 /
5418Y(2) / 12 / 2.7 / 165 / Supplemental Information
Servicing Status
Baseline Servicing
Embedded Options Available
Yes
Use Conditions
Server/Enterprise Memory Specifications
Max Memory Size (dependent on memory type)
4 TB
Memory Types
Up to DDR5 4400 MT/s 1DPC and 2DPC
Max Number of Memory Channels
8
ECC Memory Supported
Yes Expansion Options
Scalability
2S
PCI Express Revision
5
Max Number of PCI Express Lanes
80 Package Specifications
Sockets Supported
FCLGA4677
Package Carrier
E1B
DTS Max
94 ^oC
TCASE
81 Intel On Demand Available Upgrades
Activation Model Products / QAT / DLB / DSA / IAA / SGX512
Analytics Suite 1 / - / - / - / 1 / -
SGX512 / - / - / - / - / 512 Advanced Technologies
Intel On Demand Activation Model
Yes
Intel Data Streaming Accelerator (DSA)
1 default devices
Intel Advanced Matrix Extensions (AMX)
Yes
Intel Speed Select Technology - Core Power
Yes
Intel Speed Select Technology - Turbo Frequency
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Select Technology - Performance Profile
Yes
Intel Speed Select Technology - Base Frequency
Yes
High Priority Cores
8
High Priority Core Frequency
2.20 GHz
Low Priority Cores
16
Intel Resource Director Technology (Intel RDT)
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel Transactional Synchronization Extensions
Yes
Intel 64
Yes
Instruction Set Extensions
Intel AMX, Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Number of AVX-512 FMA Units
2 Security and Reliability
Intel Crypto Acceleration
Yes
Intel QuickAssist Software Acceleration
Yes
Intel Platform Firmware Resilience Support
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Intel Software Guard Extensions (Intel SGX)
Yes with Intel SPS
Default Maximum Enclave Page Cache (EPC) Size for Intel SGX
128 GB
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Intel Run Sure Technology
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
YesItem Dimension (L inchxW inchxH inch)
5 x 3 x 4

Weight
1.00 lb

Warranty Information
1 Year Limited
