KanexPro
KanexPro UltraSlim 4K/60 HDMI 2.0 Extender over HDBaseT up to 230ft & PoH (ext-70sl18g)
- SKU:
- 18952240
- MPN:
- ext-70sl18g
- Availability:
- Out of stock
- Stock Update:
- 09/28/2026 09:39:15 AM PST
- Stock Update:
- 09/28/2026 09:39:15 AM PST
Description
This item is brand-new, factory sealed.

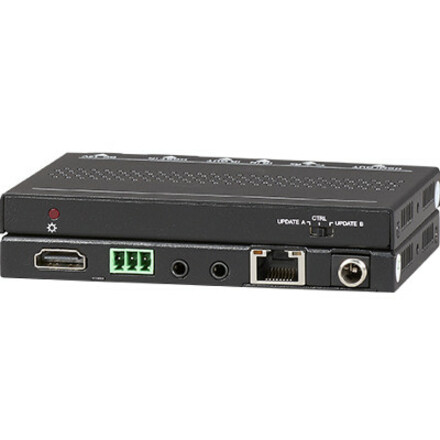

The KanexPro EXT-70SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display remotely located 230 feet away. It also supports PoH (power over HDBaseT) requiring you to power only from one side, either the sender or receiver. For dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key features of these extenders.
Compliant with HDCP 2.2, this extender set supports EDID and CEC pass-through to enable HDMI-CEC enabled devices to communicate and operate smoothly. For control, it provisions bi-directional IR and RS-232 pass-thru to send control commands to 4K displays for turning on/ off and other functions.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and smart homes.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 1 x Locking Power Supply
Features
- 1 x Transmitter
- 1 x Receiver
- 1 x Locking Power Supply
Specs
| Physical Characteristics | |
| Transmitter Weight (Approximate) | 1.05 lb |
| Transmitter Depth | 3.30" |
| Transmitter Height | 0.47" |
| Transmitter Width | 4.50" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | KanexPro |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro EXT-70SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display remotely located 230 feet away. It also supports PoH (power over HDBaseT) requiring you to power only from one side, either the sender or receiver. For dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key features of these extenders. Compliant with HDCP 2.2, this extender set supports EDID and CEC pass-through to enable HDMI-CEC enabled devices to communicate and operate smoothly. For control, it provisions bi-directional IR and RS-232 pass-thru to send control commands to 4K displays for turning on/ off and other functions. Applications Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and smart homes. Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals. |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | UltraSlim 4K/60 HDMI 2.0 Extender over HDBaseT up to 230ft & PoH |
| Manufacturer | KanexPro |
| Manufacturer Part Number | EXT-70SL18G |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6a |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 230 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
