KanexPro

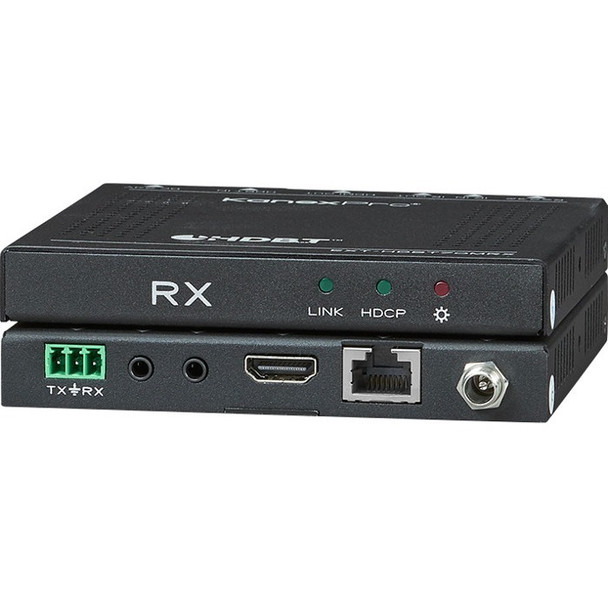

KanexPro UltraSlim 4K/60 HDMI Receiver over HDBaseT- 230ft. [70m] (ext-hdbt70mrx)
- SKU:
- 18154986
- MPN:
- ext-hdbt70mrx
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
The KanexPro EXT-HDBT70MRX is an HDCP 2.2 compliant receiver - extender consisting of one HDMI output one Ethernet input and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m.Supports 4K/60Hz with 4:2:0. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Specs
| Physical Characteristics | |
| Receiver Width | 4.53" |
| Receiver Height | 0.64" |
| Receiver Depth | 4.29" |
| Receiver Weight (Approximate) | 6.88 oz |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | KanexPro |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro EXT-HDBT70MRX is an HDCP 2.2 compliant receiver - extender consisting of one HDMI output one Ethernet input and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m.Supports 4K/60Hz with 4:2:0. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function. Applications Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater. Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals. |
| Product Type | Video Extender Receiver |
| Product Name | UltraSlim 4K/60 HDMI Receiver over HDBaseT- 230ft. (70m) |
| Manufacturer | KanexPro |
| Manufacturer Part Number | EXT-HDBT70MRX |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6a |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 229.66 ft |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
