Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS (K35231NA)
- SKU:
- 21603432
- MPN:
- k35231na
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/20/2026 12:59:14 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and pay only $311.77 each 311.77 |
- Stock Update:
- 10/20/2026 12:59:14 AM PST
Description
This item is brand-new, factory sealed.
Boost Your Productivity with Thunderbolt™ 5
SD5010T5 offers -fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS
Supports up to 3 x 4K monitors @ 144Hz or 2 x 8K @ 60Hz/30Hz monitors for Windows laptops via two HDMI® ports and one Thunderbolt™ 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, it supports 2 x 4K @ 60Hz via two HDMI® ports, or you can switch one of the displays to up to 6K through the Thunderbolt™ 5 port. *M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed.
Up to 140W Dynamic Power Delivery + KonstantCharge™
Perfect for demanding workstations, this single-cable Thunderbolt™ 5 dock supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge™, enabling connected devices to charge even when your laptop is undocked.
13-in-1 Design

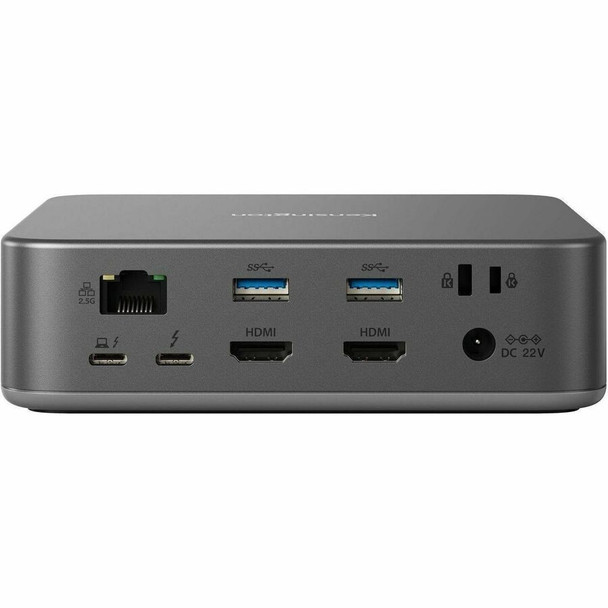

A single Thunderbolt™ 5 cable expands your connectivity: 2 x Thunderbolt™ 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots, and 2.5Gbps Ethernet.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Free DockWorks™ software for Windows users delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty.
Sustainability Attributes
The outer case of this docking station contains 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.
Package Contents:
- SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
- 1 x Thunderbolt 5 Cable
- 1 x 180W Power Supply Unit
- 1 x NA Power Cord
- 1 x Quick Installation Guide
- 1 x Compliance Sheet
- 1 x Warranty Card
- 1 x Welcome Card
Features
- SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
- 1 x Thunderbolt 5 Cable
- 1 x 180W Power Supply Unit
- 1 x NA Power Cord
- 1 x Quick Installation Guide
- 1 x Compliance Sheet
- 1 x Warranty Card
- 1 x Welcome Card
Post-consumer-waste%:
100%
Compatibility:
A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging, MacBook M-Series models with Pro and Max chips
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Kensington Security Slot:
Yes
Brand Compatibility:
Apple
Country of Origin:
Vietnam
Specs
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Input Voltage Detail |
|
| Power Source Type | Power Adapter |
| Output Voltage | 22 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 1.95 lb |
| Product Color | Space Gray |
| Height | 5.51" |
| Color Family | Gray |
| Width | 5.51" |
| Depth | 1.57" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| USB Power Delivery | 140W |
| Number of USB Type-A Ports | 3 |
| USB Type-C Detail | 1 x USB-C® 3.2 Gen2 10Gbps (up to 15V/2A), 1 x USB-C® 3.2 Gen2 10Gbps (up to 5V/1.5A) |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of Thunderbolt 5 Ports | 2 |
| Number of HDMI Outputs | 2 |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-C Ports | 2 |
| Total Number of USB Ports | 5 |
| Thunderbolt Ports Quantity | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| USB Type-C | Yes |
| Headphone/Microphone Combo Port | Yes |
| Thunderbolt 5 | Yes |
| Network (RJ-45) | Yes |
| HDMI Version | <p>HDMI 2.1</p> |
| Total Number of Ports | 13 |
| Host Interface | Thunderbolt 5 |
| USB Type-A | Yes |
| HDMI | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| General Information | |
| Brand Name | Kensington |
| Package Type | Retail |
| Manufacturer Website Address | http://www.kensington.com |
| Marketing Information | Boost Your Productivity with Thunderbolt™ 5 SD5010T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage. Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS Supports up to 3 x 4K monitors @ 144Hz or 2 x 8K @ 60Hz/30Hz monitors for Windows laptops via two HDMI® ports and one Thunderbolt™ 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, it supports 2 x 4K @ 60Hz via two HDMI® ports, or you can switch one of the displays to up to 6K through the Thunderbolt™ 5 port. *M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed. Up to 140W Dynamic Power Delivery + KonstantCharge™ Perfect for demanding workstations, this single-cable Thunderbolt™ 5 dock supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge™, enabling connected devices to charge even when your laptop is undocked. 13-in-1 Design A single Thunderbolt™ 5 cable expands your connectivity: 2 x Thunderbolt™ 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots, and 2.5Gbps Ethernet. Built-in SD and Micro SD Card Readers Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card readers. Universal Compatibility Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later). Zero-Footprint Mounting Option and Security Cable Lock Slots Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately. Free Kensington DockWorks™ Software and 3-Year Limited Warranty Free DockWorks™ software for Windows users delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty. Sustainability Attributes The outer case of this docking station contains 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging. |
| Product Type | Docking Station |
| Product Name | SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS |
| Manufacturer | Kensington Computer Products Group |
| Manufacturer Part Number | K35231NA |
| Product Model | SD5010T5 |
| Packaged Quantity | 1 Box |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Charging Capability | Yes |
| Number of Displays Supported | 3 |
| Screen Mode Supported |
|
| Maximum Data Transfer Rate | 10 GB/s |
| Cable Length | 3.30 ft |
| Features |
|
| Supported Resolutions |
|
| Security Slot Type |
|
| Device Supported |
|
| Memory Card Reader | Yes |
| Memory Card Supported |
|
| Connectivity Technology | Wired |
