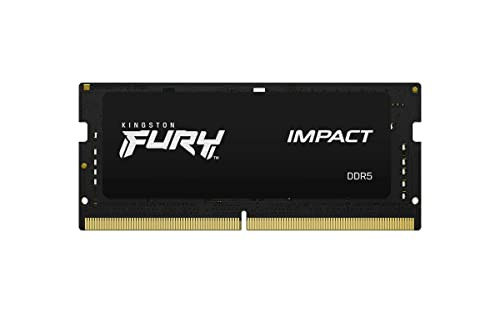

Kingston FURY Impact 32GB DDR5 SDRAM Memory Module (KF548S38IB32)

This item is brand-new, factory sealed.

KF548S38IB-32

32GB 4G x 64-Bit

DDR5-4800 CL38 262-Pin SODIMM

DESCRIPTION

Kingston FURY KF548S38IB-32 is a 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.18 (30mm)CL(IDD)
38 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
29.12ns(min.)UL Rating
94 V - 0Operating Temperature
0^o C to +85^o CStorage Temperature
-55^o C to +100^o CItem Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime
