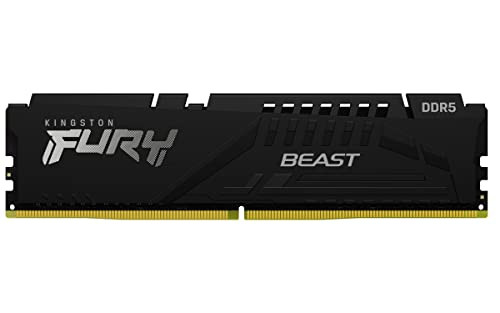

Kingston Fury Beast 32GB DDR5 SDRAM Memory Module (KF552C40BB32)

This item is brand-new, factory sealed.

FURY KF552C40BB-32 is a 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0.

Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.37 (34.9mm), w/heatsink


FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V CL(IDD)
40 cycles Row Cycle Time (tRCmin)
48ns(min.) Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.) Row Active Time (tRASmin)
32ns(min.) UL Rating
94 V - 0 Operating Temperature
0 ^oC to +85 ^oC Storage Temperature
-55 ^oC to +100 ^oCItem Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 lb

Warranty Information
Lifetime
