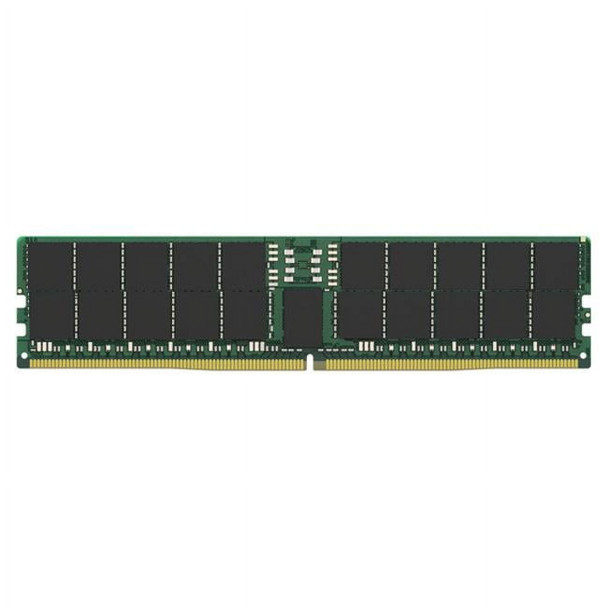

Kingston 64GB DDR5 SDRAM Memory Module KSM56R46BD4PMI64HAI

This item is brand-new, factory sealed.

KSM56R46BD4PMI-64HAI

64GB 2Rx4 8G x 80-Bit

PC5-5600 CL46 Registered EC8 288-Pin DIMM



Kingston's KSM56R46BD4PMI-64HAI is a 8G x 80-bit (64GB)
DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC,
memory module, based on forty 4G x 4-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5600 timing
of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.



FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

x80 ECC (x40, 2 independent I/O sub channels)

32 internal banks

Hard/Soft Post Package Repair

Sideband access with I3C/I2C

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-FreeCL(IDD)
46 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Row Precharge Time (tRPmin)
16ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +95^o C
Storage Temperature
-55^o C to +100^o CModule Assembly
DRAM: HYNIX (A-Die)
RCD: IDT/Renasas
PMIC: MPS
SPD Hub: Montage
TS: IDT/RenasasItem Dimension (L inchxW inchxH inch)
6 x 1 x 2

Weight
1 lb

Warranty Information
Limited Lifetime
