Kingston 308694 Me Ksm56r46bd4-64mh 64gb 5600mt S Ddr5 Ecc Reg Cl46 Dimm 2rx4 Micronh

This item is brand-new, factory sealed.

KSM56R46BD4-64MH

64GB 2Rx4 8G x 80-Bit

PC5-5600 CL46 Registered EC8 288-Pin DIMM

DESCRIPTION

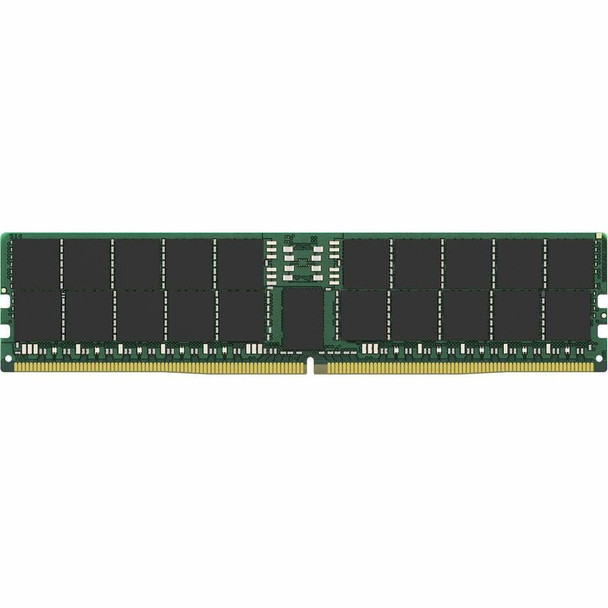

Kingston's KSM56R46BD4-64MH is a 8G x 80-bit (64GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

x80 ECC (x40, 2 independent I/O sub channels)

32 internal banks

Hard/Soft Post Package Repair

Sideband access with I3C/I2C

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-FreeCL
46 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
32ns(min.)Row Precharge Time (tRPmin)
16ns(min.)UL Rating
94 V - 0Operating Temperature
0^o C to +95^o CStorage Temperature
-55^o C to +100^o CItem Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime
