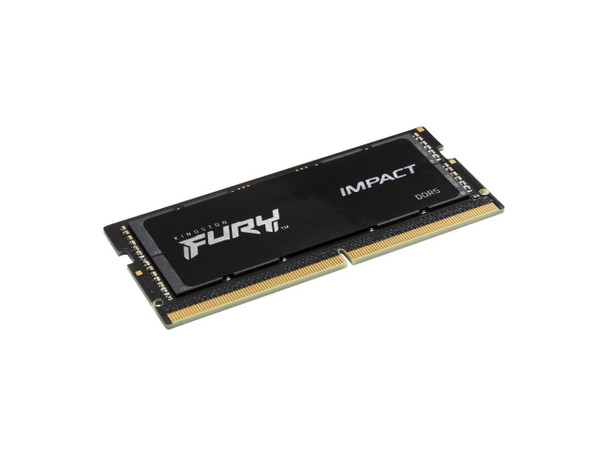

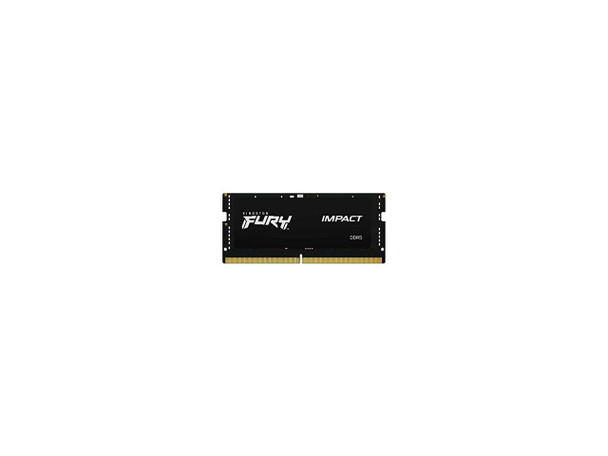

Kingston FURY Impact 32GB DDR5 SDRAM Memory Module (kf556s40ib-32)
(No reviews yet)
Write a Review
- SKU:
- 19960700
- MPN:
- kf556s40ib-32
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/08/2024 12:24:07 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $119.35 each 119.35 |
| Buy 4 or above | and pay only $116.66 each 116.66 |
- Stock Update:
- 05/08/2024 12:24:07 PM PST
Description
This item is brand-new, factory sealed.
Kingston FURY KF556S40IB-32 is a 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers.Note: The PnP feature offers a range of speed and timing options to support the widest variety of processors and chipsets. Your maximum speed will be determined by your BIOS.
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECCCL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
28.56ns(min.)
UL Rating
94 V - 0
Operating Temperature
0o C to +85o C
Storage Temperature
-55o C to +100o CFACTORY TIMING PARAMETERS
Default (Plug N Play): DDR5-5600 CL40-40-40 at 1.1VItem Dimension (L inchxW inchxH inch)
1 x 3 x 7
Weight
1lb
Warranty Information
Lifetime
Features
Country of Origin:
Taiwan
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | SoDIMM |
| Length | 2.7" |
| Number of Pins | 262-pin |
| Width | 1.2" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Kingston |
| Manufacturer Website Address | http://www.kingston.com |
| Marketing Information | Kingston FURY Impact DDR5 Memory | 8GB, 16GB and 32GB capacities up to 5600MT/s Your notebook or small-form-factor machine can now experience the latest, cutting-edge memory technology with Kingston FURY™ Impact DDR5. With Intel® XMP 3.0 Certified SODIMM kit capacities of up to 64GB, Kingston FURY Impact DDR5 packs all the enhanced features of DDR5 into a slim, compact form factor. Kingston FURY Impact DDR5's innovative Plug N Play overclocking technology automatically supports up to 5600MT/s with lower latencies at 1.1V, giving your system a boost in performance without having to enable a profile. Features Mighty DDR5 SODIMM Performance Plug N Play Automatic Overclocking Functionality Intel® XMP 3.0 Certified Lower Power Consumption, Increased Efficiency Improved Stability with On-Die ECC |
| Product Type | RAM Module |
| Product Name | FURY Impact 32GB DDR5 SDRAM Memory Module |
| Manufacturer | Kingston Technology Company |
| Manufacturer Part Number | KF556S40IB-32 |
| Product Line | FURY Impact |
| Technical Information | |
| Memory Technology | DDR5 SDRAM |
| Number of Modules | 1 x 32GB |
| Memory Size | 32 GB |
| CAS Latency | CL40 |
| Memory Rank | Dual-rank |
| Memory Speed | 5600 MHz |
| Device Supported | Notebook |
| Memory Voltage | 1.10 V |
| Memory Standard | DDR5-5600/PC5-44800 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
