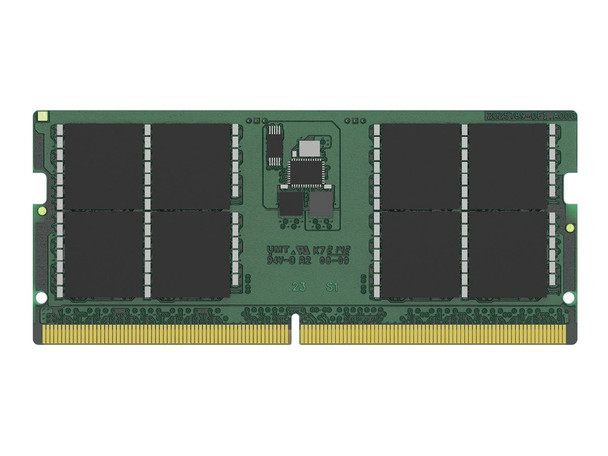

Kingston ValueRAM 48GB DDR5 SDRAM Memory Module (kvr56s46bd8-48)

This item is brand-new, factory sealed.

KVR56S46BD8-48

48GB 2Rx8 6G x 64-Bit

PC5-5600 CL46 262-Pin SODIMM
DESCRIPTION

This document describes ValueRAM's KVR56S46BD8-48 is a 6G x 64-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-FreeCL(IDD)
46 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
32ns(min.)UL Rating
94 V - 0Operating Temperature
0^o C to +85^o CStorage Temperature
-55^o C to +100^o CItem Dimension (L"xW"xH")
1 x 2 x 4

Weight
1 lb

Warranty Information
Limited Lifetime
