LEA Professional

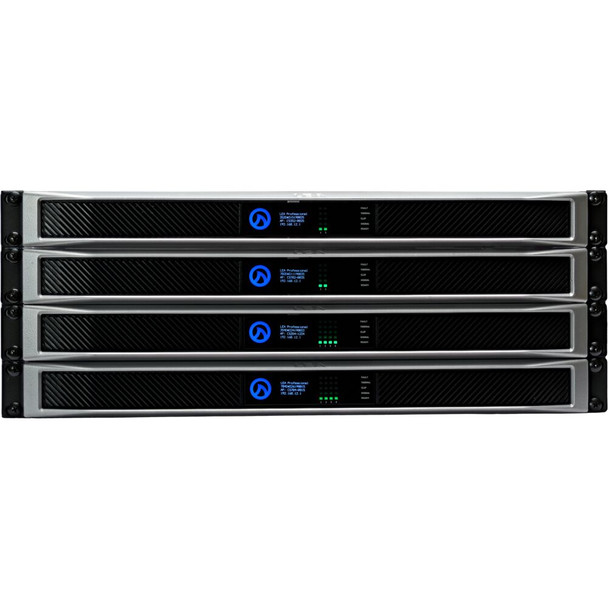

LEA Professional CONNECT702D 2 Channel X 700 Watt At 4ohms 8ohms 70v And 100v Per Channel
(No reviews yet)
Write a Review
- SKU:
- 21694750
- MPN:
- connect702d
- Availability:
- Usually ships the same or next business day. In stock at our OH, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/21/2026 02:43:54 AM PST
- Stock Update:
- 10/21/2026 02:43:54 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Connect 702D - 2-Channel IoT-Enabled Install Power Amplifier with Dante- Web Browser-based UI works on any device with no software to download
- Direct LoZ and HiZ (70V or 100V) selectable per channel
- Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
- Mounting Type: Surface Mount
- Number of Channels: 2
- Manufacturer: Lea Professional
- Model: 702D
- Brand Name: Lea Professional
- Number of Items: 1
- UPC: 850011348499
- Part Number: CONNECT 702D
Introducing the world?s first Internet of Things- (IoT) enabled, professional-grade amplifier family the?Dante Connect Series. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in WiFi access point, connect to the venue?s WiFi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
Specs
| Power Description | |
| Operating Power Consumption | 300 W |
| Physical Characteristics | |
| Weight (Approximate) | 7.50 lb |
| Width | 19" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | LEA Professional |
| Manufacturer Website Address | http://www.leaprofessional.com |
| Marketing Information | Introducing the world's first Internet of Things- (IoT) enabled, professional-grade amplifier family - the DANTE CONNECT SERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in WiFi access point, connect to the venue's WiFi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Then there's the Cloud... DANTE CONNECT SERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional.cloud The DANTE CONNECT SERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring. |
| Product Type | Amplifier |
| Product Name | CONNECT 702D Amplifier |
| Manufacturer | LEA Professional |
| Manufacturer Part Number | CONNECT 702D |
| Product Model | CONNECT 702D |
| Product Line | Connect |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet | Yes |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Classification | D |
| Impedance | 8 Ohm |
| Total Harmonic Distortion (THD) | 0.1% |
| Audio | |
| Audio Channels | 2 |
| RMS Output Power | 700 W |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
