Listen Basic DSP RF Receiver (72 MHz) LR3200072
(No reviews yet)
Write a Review
- SKU:
- 19220840
- MPN:
- lr-3200-072
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/28/2026 06:44:03 AM PST
- Stock Update:
- 10/28/2026 06:44:03 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

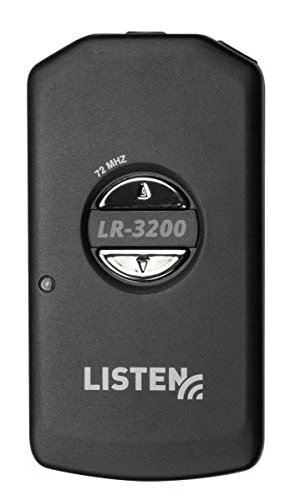

Listen Technologies LR-3200 Basic DSP RF Receiver, 72 MHz- RF receiver offering best-in-class sensitivity and sound
- Integrated neck loop/lanyard with DSP loop driver for an enhanced T-coil listening experience
- Smallest device of its kind makes it easier to wear and use and for venues to dispense, store and maintain
- Lanyard and belt clip options offer convenient and discreet choices for the end-user
- Advanced rechargeable battery technology eliminates the costs and hassles associated with frequent battery replacement
- Product Dimensions: 4.25 x 2.55 x 1.25 inches
- Item Weight: 3.2 ounces
Listen Technologies LR-3200-072 Basic DSP RF Receiver (72 MHz), 50mW Maximum, Impedance 32 ohm, Integrated Neck Loop/Lanyard with DSP Loop Driver, Advanced Rechargeable Battery
Key Features- RF receiver offering best-in-class sensitivity and sound
- Integrated neck loop/lanyard with DSP loop driver for an enhanced T-coil listening experience
- Smallest device of its kind makes it easier to wear and use and for venues to dispense, store and maintain
- Lanyard and belt clip options offer convenient and discreet choices for the end-user
- Advanced rechargeable battery technology eliminates the costs and hassles associated with frequent battery replacement
- Designed for single-channel applications
- System Distortion: <1% total harmonic distortion (THD) at 80% deviation
- Output/s: (2) 3.5mm connectors, unbalanced, 0 dBu nominal output level, 50mW maximum, impedance 32 ohm
- System Frequency Response: 50Hz - 15kHz (3 dB)
- System Signal to Noise Ratio: SQ disabled 70dB, SQ enabled 80dB
- User Controls: Power, up/down volume
- Programming: Via software and USB port
- Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
- Frequency Range: 72.0250 - 75.9500MHz
- Number of Channels: 3 wide Band
- Sensitivity: .6uV typical, 1uV maximum for 12dB sinad
- Frequency Accuracy: .005% stability 32 to 122F
- Squelch: Fixed level, automatic on loss of RF signal
- Antenna Type: Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
- Battery Type: Lithium Ion 3.7Vdc, 1200mAh
- Power Supply: Micro USB connector, 5V, 500mA
- Dimensions: 3.75"x2.00"x0.64"
- Weight: 45 g
- Shipping Weight: 1.0 lbs.
Package Contents:
- Basic DSP RF Receiver (72 MHz)
- Quick Start Guide
- 1 x Non-proprietary field Replaceable Lithium-ion Battery
Features
Package Contents:
Sound Monitoring
Restriction of Hazardous Substances (RoHS)
- Basic DSP RF Receiver (72 MHz)
- Quick Start Guide
- 1 x Non-proprietary field Replaceable Lithium-ion Battery
Application/Usage:
Sound Monitoring
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Power Source | Batteries |
| Physical Characteristics | |
| Weight (Approximate) | 1.60 oz |
| Product Color | Black |
| Height | 3.8" |
| Width | 2" |
| Depth | 0.6" |
| Warranty | |
| Limited Warranty | Lifetime |
| Battery Information | |
| Battery Voltage | 3 V |
| Battery Rechargeable | Yes |
| Battery Chemistry | Lithium (Li) |
| Number of Batteries Supported | 1 |
| General Information | |
| Brand Name | Listen |
| Manufacturer Website Address | http://www.listentech.com |
| Marketing Information | The LR-3200-072 receiver from Listen Technologies offers outstanding audio clarity and quality with the best range and reception in its class. Part of our Intelligent Digital Signal Processing (iDSP) line, the LR-3200-072 is the smallest device of its kind, resulting in a compact unit that won't burden the end user. An integrated neck loop/lanyard makes each receiver easy to wear, and the DSP loop driver offers an improved listening experience for anyone with a T-coil-equipped hearing aid. Dual 3.5mm output jacks also allow receivers to be shared between users. Each receiver is equipped with a micro USB connection which can be used with free iDSP software for charging, set up, programming, inventory management and firmware updates. Extended speaking sessions, presentations and more can be challenging for other devices, but the LR-3200-072 incorporates advanced Lithium-ion rechargeable batteries that offer long life and reliable power. |
| Product Type | Assistive Listening System Receiver |
| Product Name | Basic DSP RF Receiver (72 MHz) |
| Manufacturer | Listen Technologies Corporation |
| Manufacturer Part Number | LR-3200-072 |
| Packaged Quantity | 1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Listen Basic DSP RF Receiver (72 MHz) LR3200072
$146.00
