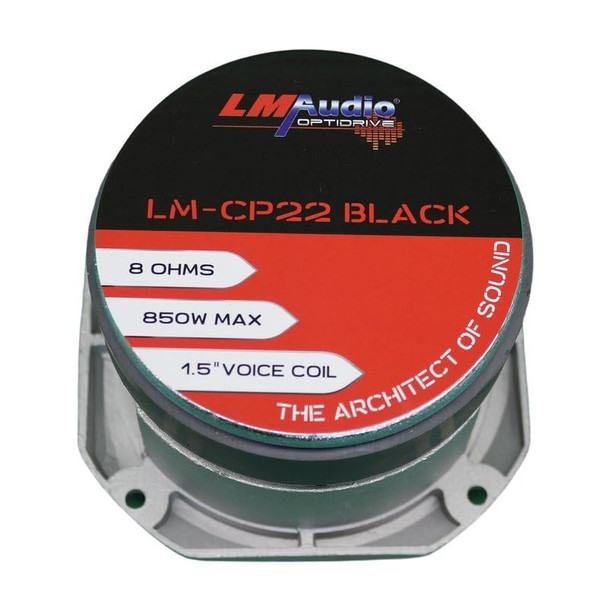

Luna Morena LM-CP22B [each]

This item is brand-new, factory sealed.

* 1.5-in Voice Coil Bullet Super Tweeter
* Diecast Aluminum Frame
* 8 ohms Impedance
* Heavyweight magnet structure
* Sensitivity 107 dB 1W/1m
* Frequency Response: 3k-20khz

Dimensions:
* Diagonal holes to center: 107mm
* Square holes to center: 76mm
* 103mm Square frame
* 67mm Total Depth
* 55mm Mounting depth
* 89mm Magnet Diameter
* 90mm Mounting Hole

* Requires Crossover NOT INCLUDED
SEE BELOW RECOMMENDATIONS FOR HIGH POWER USE:
* 6.65 microfarads for crossover at ~3kHz
* 5.0 microfarads for 4 kHz
* 4.0 microfarads for 5 kHz
* 3.3 microfarads for 6 kHz

Crossover Application Notes for High Power
* Capacitor type: Use non-polarized film capacitors rated for at least 250V-400V to handle high power without distortion or failure.
* Tolerance: Choose capacitors with +/-5% or better tolerance for consistent crossover behavior.
* Thermal stability: Polypropylene film capacitors are preferred for their low ESR and high thermal stability.

Optional Enhancements
* Second-order crossover: For steeper roll-off (12 dB/octave), pair the capacitor with an inductor. This reduces low-frequency energy reaching the tweeter.
* Protection diode: In extreme SPL setups, a diode or PTC resettable fuse can help protect against spikes.

* Shipping Dimensions:3-in x 4.4-in x 4.8-in [Each]
