maxwell

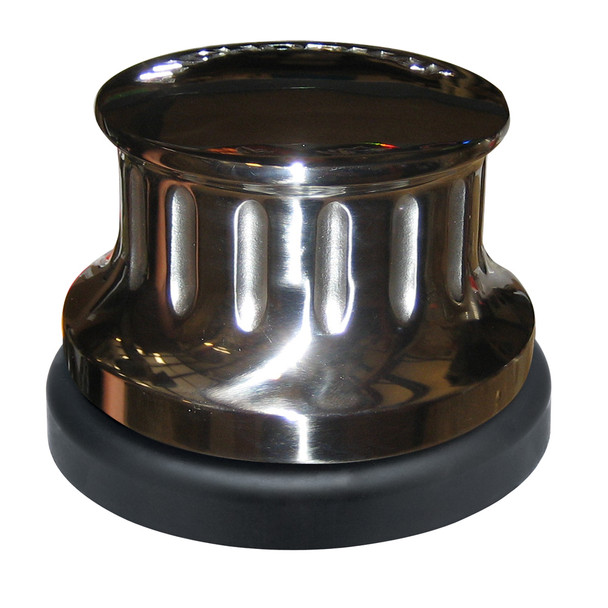

Maxwell Anchormax Windlass
- SKU:
- 18322773
- MPN:
- anchormax
- Availability:
- Usually ships the same or next business day. In stock at our FL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/07/2026 05:53:01 AM PST
- Stock Update:
- 07/07/2026 05:53:01 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
ANCHORMAX™ WindlassFeatures:
- Has an extremely high power to weight ratio
- ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
- Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)
- Fitting to the boat is simplicity itself as no dismantling of the winch is required
- Gear housings are marine-grade alloy and the drum is stainless steel
- Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions
- Not recommended for use to haul halyards
- Not recommended for use to haul chain
Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.
STANDARD EQUIPMENT
- Footswitch
| SPECIFICATIONS | |
| Maximum Line Pull | 386kg (850lb) |
| Speed @ nominal working load | 24m/min (76ft per min) (80 amps with 100kg/220lb load) |
| Voltage | 12v |
| Power | 600w |
| Weight | 8kg(17.6lb) |
| Maximum Boat Load | 10m (33ft) |
| Max. Boat Weight | 4 Tons |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Maxwell Anchormax Windlass
$1,017.66
