Mellanox Technologies
Mellanox Technologies MCX653105A-ECAT-SP Connectx -6 Vpi Adapter Card, 100gb/s [hdr100, Edr Ib And 100gbe], Single-port Qsfp56, Pcie3.0/4.0 X16, Tall Bracket, Single Pack
- SKU:
- 18250914
- MPN:
- mcx653105a-ecat-sp
- Availability:
- Out of stock
- Shipping:
- $342.11 (Fixed Shipping Cost)
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
Mellanox ConnectX-6 VPI 100Gigabit Ethernet Card- UPC: 7290108488463
- Weight: 0.550 lbs
- Package Dimensions: 8.7 x 6.7 x 2.5 inches
- Item Weight: 1 pounds

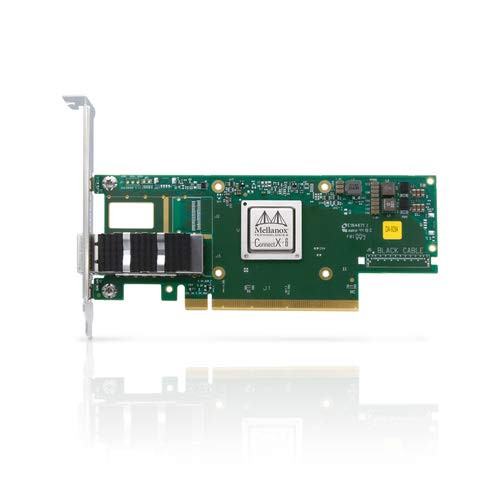

Mellanox MCX653105A-ECAT-SP (Single Pack) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket
Mellanox MCX653105A-ECAT-SP (Single Pack MCX653105A-ECAT available through distribution.) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket.
World's first 200Gb/s HDR InfiniBand and Ethernet network adapter card, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for High-Performance Computing, Cloud, Web 2.0, Storage and Machine Learning applications.
ConnectX-Virtual Protocol Interconnect (VPI) is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.
In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
Features
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Specs
| Physical Characteristics | |
| Form Factor | Standup |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Host Interface | PCI Express 3.0 x16 |
| I/O Expansions | |
| Expansion Slot Type | QSFP56 |
| General Information | |
| Brand Name | Mellanox |
| Manufacturer Website Address | http://www.nvidia.com |
| Marketing Information | Mellanox MCX653105A-ECAT-SP (Single Pack) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket Mellanox MCX653105A-ECAT-SP (Single Pack MCX653105A-ECAT available through distribution.) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket. World's first 200Gb/s HDR InfiniBand and Ethernet network adapter card, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for High-Performance Computing, Cloud, Web 2.0, Storage and Machine Learning applications. ConnectX-Virtual Protocol Interconnect (VPI) is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of enhancements to further improve performance and scalability. ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds. |
| Product Type | 100Gigabit Ethernet Card |
| Product Name | ConnectX-6 VPI 100Gigabit Ethernet Card |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MCX653105A-ECAT-SP |
| Product Line | ConnectX-6 VPI |
| Packaged Quantity | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology |
|
