Adaptec

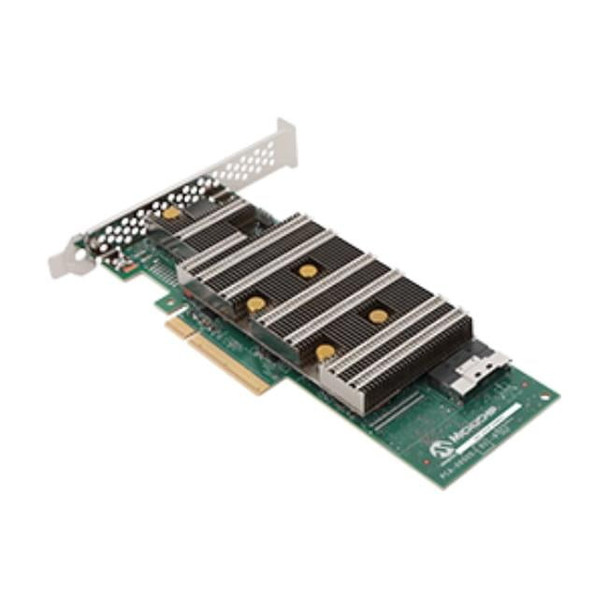

Microchip Adaptec HBA 1200-8e 12008EXS
- SKU:
- 20774735
- MPN:
- 285988
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/07/2025 10:56:07 AM PST
- Stock Update:
- 12/07/2025 10:56:07 AM PST
Description
This item is brand-new, factory sealed.
Adaptec HBA 1200 Series: 32i/16i/16e/8i/8eTri-Mode SAS/SATA/NVMe Host Bus Adapters
Host: x8/x16 PCIe Gen 4
Media: 24G SAS, 6G SATA, PCIe Gen 4 NVMe
Maximum Performance and Security With Tri-Mode Functionality
The Adaptec HBA 1200 family is the industry's most versatile, fully featured and secure Tri-mode SAS/SATA/NVMe host bus adapter enabling high-performance connectivity solutions for server OEM, storage systems, data center and enterprise customers.
The HBA 1200 series of PCIe Gen 4 to Tri-mode host bus adapters come in a wide range of performance optimized configurations optimized for the lowest possible cost. Built on Microchip's proven 5th generation storage controller, the SmartIOC 2200, the HBA 1200 product supports both x8 and x16 PCIe Gen 4 host interface adapters with 32, 16, and 8 media facing port variants for both internal and external Tri-mode connectivity. The HBA 1200 Ultra products are specifically designed for the most demanding NVMe and multi-port SAS SSD applications. The SmartIOC 2200 integrated PCIe Switch enables DirectPath technology - the industry's lowest latency and high bandwidth NVMe solution and the flexibility to support x1, x2, x4 and x8 wide NVMe SSDs.
This industry first 24G SAS adapter supports SAS-4 connectivity as well as Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. Superior performance enables the HBA 1200 Ultra to reach up to 29.6 GB/s throughput and 3.5M+ IOPs 4K random reads.
Microchips Trusted Platform support delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project.Key Software Features
Adapter dynamic power management to save up to 30% power
Support for up to 256 SAS/SATA target devices (238 SSDs/HDDs maximum-remainder are reserved for expanders and enclosure management)
Support for NVMe target devices with Gen 3/4 interfaces (x1, x2, x4, and x8 wide interfaces)
SAS expander support
PCIe switch support
SATA NCQ
Multi-initiator (host)/clustering for SAS
Hot-plug drive support
Automatic/manual rebuild of hot spares
SGPIO, SES, UBM and VPP enclosure management support
PBSI, MCTP and Platform Level Data Model (PLDM) and Redfish Device Enablement (RDE) for out-of-band (BMC) management
S.M.A.R.T. support
Staggered drive spin-up
Secure boot, secure update and attestation support
USB image available on www.adaptec.com/en-us/support/start to boot the maxView GUI from any USB device for enhanced GUI-based setup and offline maintenanceManagement Utilities
maxView Storage Manager
Web-based GUI management utility
Windows, Linux, Solaris, VMware support
Remote configuration, monitoring, notification and firmware updates
SMI-S support
SMTP
ARCCONF
Command-line interface
Local and remote support
arcconf for uEFI shell support
SMI-S support for VMware
ARCCONF CLI support for SAS/SATA legacy devices
uEFI BIOS Configuration Utility
HII-based configuration utility
Flashable BIOS support
Event Monitor
Lightweight event monitoring and logging tool
Distributes adapter events and notifies userManagement Utilities (Out-of-Band)
PBSI, MCTP and PLDM/RDEOperating Systems
Microsoft Windows Server, Windows 10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi, and open-source Linux drivers/inbox drivers (available from www.adaptec.com/en-us/support/start)Airflow (0oC to 55oC)
250 LFM airflow
HBA 1200-8eRegulatory
Certification CE, FCC, UL, C-tick, VCCI, KCC, CNSEnvironmental
Compliance RoHSOrdering Information
Product Name
HBA 1200-8e
Part Number
12008EXS
Form Factor
LP/MD2
Host Interfac
8-Lane PCIe Gen 4
Tri-Mode Ports
8 externalItem Dimension (L"xW"xH")
15 x 10 x 2
Weight
3 lbs
Warranty Information
3 years
Features
Operating System Compatibility:
Restriction of Hazardous Substances (RoHS)
Windows 10
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Solaris
FreeBSD
VMware ESXi
Windows Server
CentOS
Ubuntu Linux
Debian Linux
Oracle Linux
Compatibility:
- Server OEM
- Storage Systems
- Data Center
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 2.7" |
| Depth | 6.6" |
| General Information | |
| Brand Name | Microchip Adaptec |
| Manufacturer Website Address | http://www.microchip.com |
| Marketing Information | Maximum Performance and Security With Tri-Mode Functionality The Adaptec® HBA 1200 family is the industry's most versatile, fully featured and secure Tri-mode SAS/SATA/ NVMe host bus adapter enabling high-performance connectivity solutions for server OEM, storage systems, data center and enterprise customers. The HBA 1200 series of PCIe Gen 4 to Tri-mode host bus adapters come in a wide range of performance optimized configurations optimized for the lowest possible cost. Built on Microchip's proven 5th generation storage controller, the SmartIOC 2200, the HBA 1200 product supports both x8 and x16 PCIe Gen 4 host interface adapters with 32, 16, and 8 media facing port variants for both internal and external Tri-mode connectivity. The HBA 1200 Ultra products are specifically designed for the most demanding NVMe and multi-port SAS SSD applications. The SmartIOC 2200 integrated PCIe Switch enables DirectPath technology - the industry's lowest latency and high bandwidth NVMe solution and the flexibility to support x1, x2, x4 and x8 wide NVMe SSDs. This industry first 24G SAS adapter supports SAS-4 connectivity as well as Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. Superior performance enables the HBA 1200 Ultra to reach up to 29.6 GB/s throughput and 3.5M+ IOPs 4K random reads. Microchip's Trusted Platform support delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. Seamless Media Support with Tri-Mode Connectivity The HBA 1200 supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. UBM support enables auto-detection of the media type and interface bifurcation. SGPIO and SCSI Enclosure Services (SES) allow a common way to manage device status and activity for directly connected storage devices or for devices connected behind a SAS expander. The Smart Storage platform supports industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market. The Adaptec HBA 1200 adapters support a wide range of software solutions including Microsoft® Storage Spaces Direct, VMWare vSAN and OpenStack Swift/Ceph. |
| Product Type | PCIe Host Bus Adapter |
| Product Name | HBA 1200-8e |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | 12008EXS |
| Product Model | 1200-8e |
| Product Series | 1200 |
| Media & Performance | |
| Data Transfer Rate | 24 Gbit/s |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Microchip Adaptec HBA 1200-8e 12008EXS
$675.54
