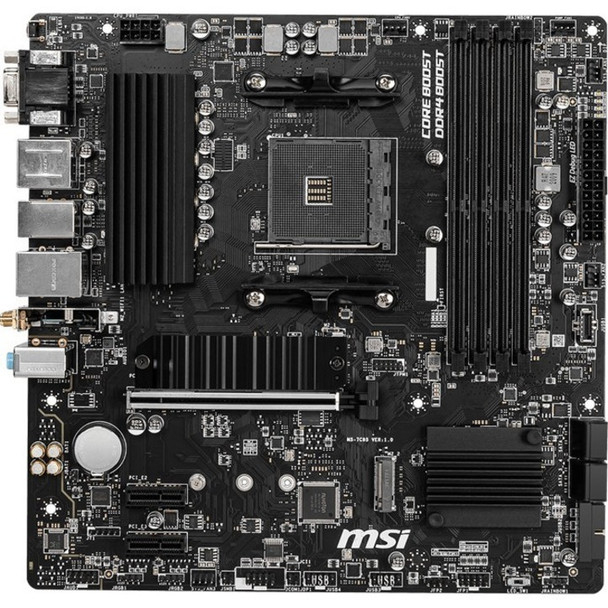

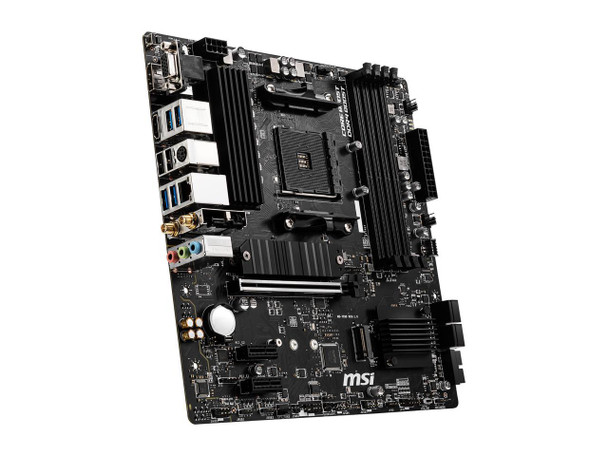

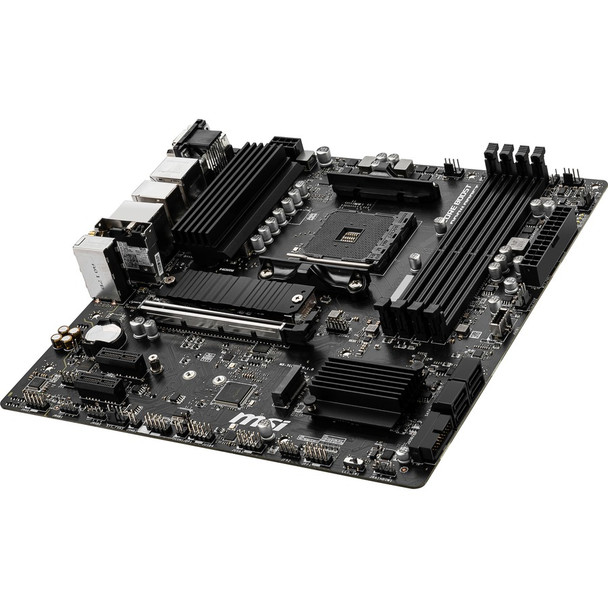

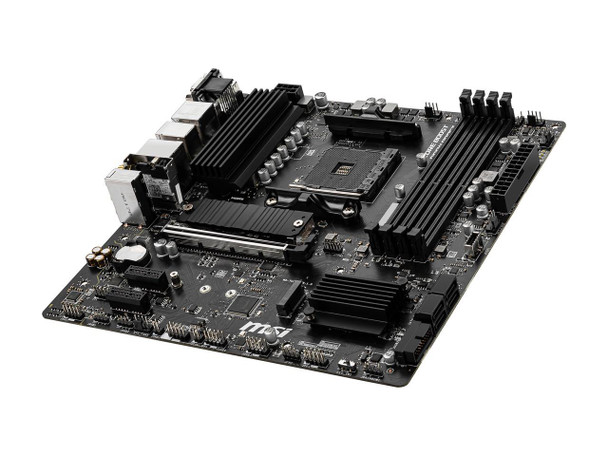

MSI B550M PRO-VDH WIFI Desktop Motherboard - AMD Chipset - Socket AM4 - Micro ATX (244357)

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number:B550MPVDHWIFI (B550M PRO-VDH WIFI)

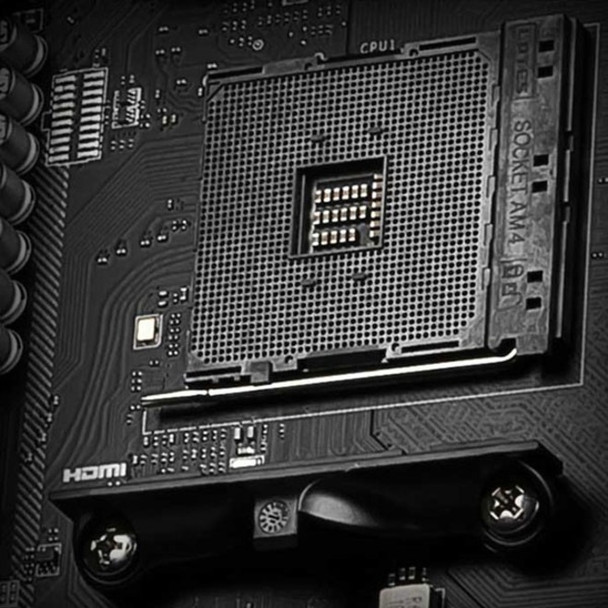

• CPU:Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
• Chipset:AMD B550 Chipset
• Memory:
  • 4x DDR4 memory slots, support up to 128GB
    - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

    - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

    * 1DPC 1R max speed 4400 MHZ

    * 1DPC 2R max speed 3733 MHZ

    * 2DPC 1R max speed 3866 MHZ

    * 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
• Expansion Slots:

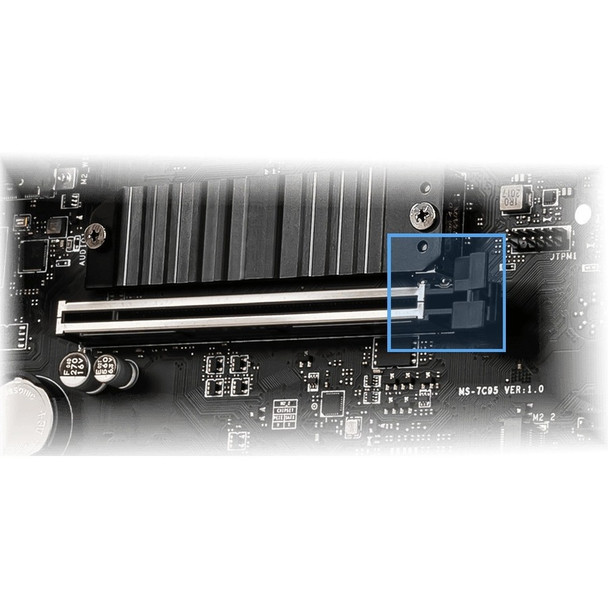

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 2x PCIe 3.0 x1 slots
• OnboardGraphics:
  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
  • Maximum shared memory of 16 GB
• Storage:
  • AMD B550 Chipset
    -4x SATA 6Gb/s ports
    -2x M.2 slots (Key M)
    -M2_1 slot (from AMD Processor)
    *Supports PCIe 4.0/ 3.0 x4
    *Supports SATA 6Gb/s
    *Supports 2242/ 2260/ 2280storage devices
    -M2_2 slot (from AMD B550 chipset)
    *Supports PCIe 3.0x4
    *Supports 2242/ 2260/ 2280 storage devices
• RAID:
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB:
  • AMD B550 Chipset
    - 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

    - 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • AMD Processor
    - 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• Audio:
  • RealtekALC892 Codec
    - 7.1-Channel High Definition Audio
• LAN:1x Realtek 8111HN Gigabit LAN controller
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
• Back PanelPorts:
  • VGA
  • USB 3.2 Gen 1 5Gbps Type-A
  • Keyboard / Mouse
  • LAN
  • Flash BIOS Button
  • DisplayPort
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wi-Fi Antenna connectors
  • 3x Audio jacks
• Dimensions:
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• Mounting:8mounting holes
