MSI

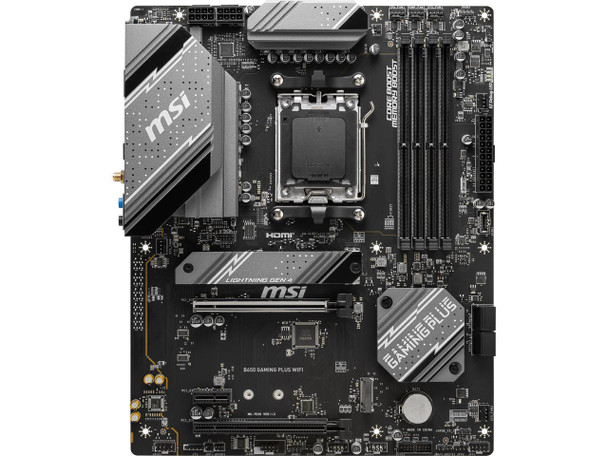

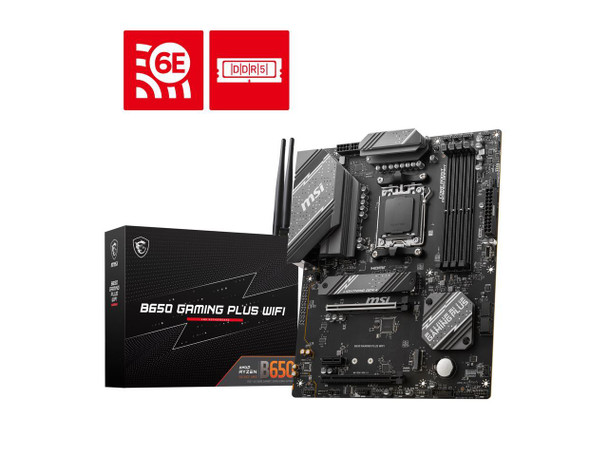

MSI B650 GAMING PLUS WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX (b650gamingpluswifi)
(No reviews yet)
Write a Review
- SKU:
- 20155297
- MPN:
- b650gamingpluswifi
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/25/2025 12:09:32 AM PST
- Stock Update:
- 12/25/2025 12:09:32 AM PST
Description
This item is brand-new, factory sealed.
B650 GAMING PLUS WIFIB650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
DIY 2.0 INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.CHIPSET
AMD B650CPU
Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7200+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPOAUDIO
Realtek ALC897 Codec
7.1-Channel High Definition AudioSTORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installedLAN
Realtek 8125BG 2.5G LANONBOARD GRAPHICS
1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT
2x PCI-E x16 slot
Supports x16/x4 or x8/x8/x4 (For Ryzen 7000 Series processors)
Supports x8/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
Supports x4/x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)MULTI-GPU
AMD MULTI-GPU SupportRAID
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devicesUSB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)WIRELESS LAN AND BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C portsLED FEATURE
4x EZ Debug LEDBACK PANEL PORTS
DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bitPCB INFO
ATX
243.84mmx304.8mmItem Dimension (L"xW"xH")
13 x 11 x 3
Weight
4 lbs
Warranty Information
3 years
Features
Environmentally Friendly:
Yes
Waste Electrical and Electronic Equipment Directive (WEEE)
AMD
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Brand Compatibility:
AMD
Specs
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| General Information | |
| Brand Name | MSI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all. COOLING OVERVIEW | Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. M.2 Shield Frozr Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed. Chipset Heatsink The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH. DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit. 12+2+1 POWER DESIGN Unleash and sustain the maximum performance with a VRM design built with a total of 12+2+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI B650 GAMING PLUS WIFI is ready to sustain heavy daily work. OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. 6 PCB layers 2oz Thickened Copper EZ M.2 clip Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. Run into trouble when updating your BIOS or somehow corrupted it? Don't worry, MSI motherboards offer multiple options to successfully boot your system again. Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. REINFORCED, HEAVY SOLDERED CONNECTIONS MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | B650 GAMING PLUS WIFI Gaming Desktop Motherboard |
| Manufacturer | MSI |
| Manufacturer Part Number | B650GPWIFI |
| Product Model | B650 GAMING PLUS WIFI |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | B650 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| HDMI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
