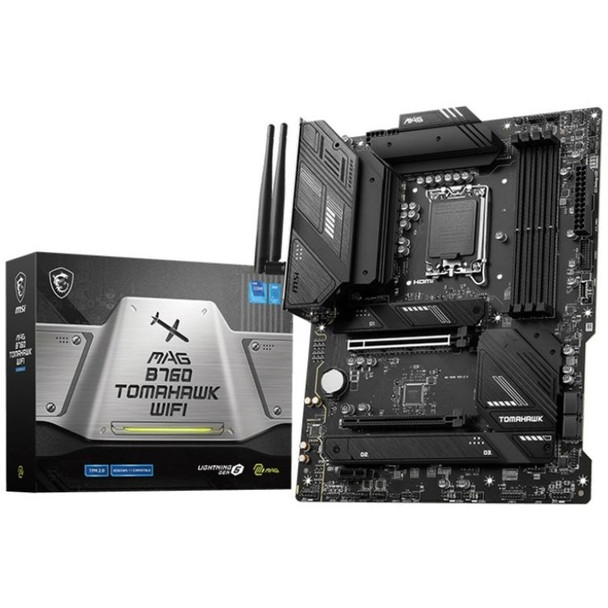

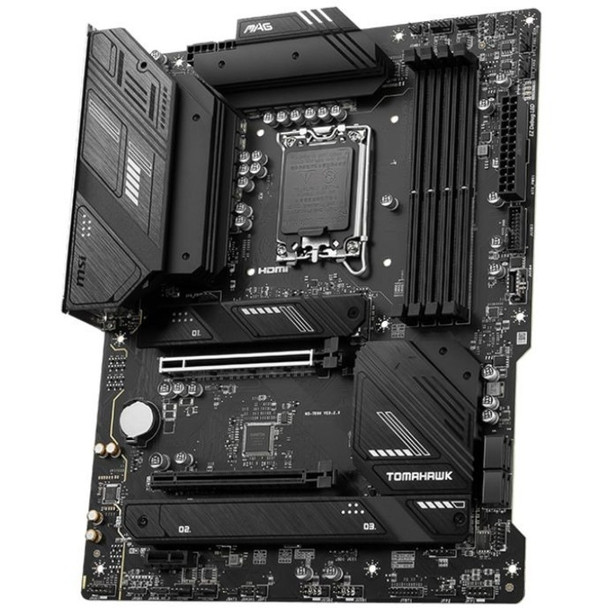

MSI MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX (b760tamawifi)

This item is brand-new, factory sealed.

Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, up to 7000+(OC) MHz

Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Fast Game experience: PCIe 5.0 slot, Gen 4 x4 M.2, USB 3.2 Gen 2x2

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material


MAG unite as one

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. CHIPSET
INTEL B760 CPU SUPPORT
Supports 12th/13th Gen Intel Core^TM Processors, Pentium Gold and Celeron Processors
LGA1700 MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7000+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile ONBOARD GRAPHICS
1x HDMI^TM
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz^Note
Support DP 1.4, maximum resolution of 8K 60Hz^Note
Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) STORAGE
3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G portRAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) LAN
Realtek 2.5Gbps LAN WIRELESS / BLUETOOTH
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz^Note (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Note: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11. AUDIO
Realtek ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C LED FEATURE
4x EZ Debug LED BACK PANEL PORTS
USB 2.0
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI^TM 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSION
ATX
243.84mmx304.8mmItem Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
5.00 lb

Warranty Information
3 Years
