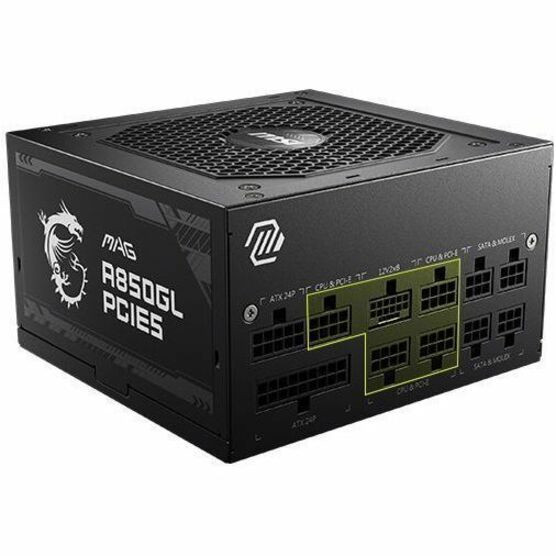

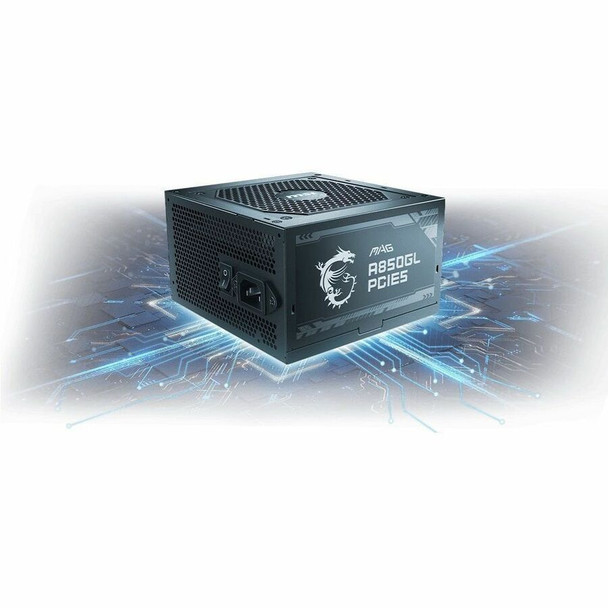

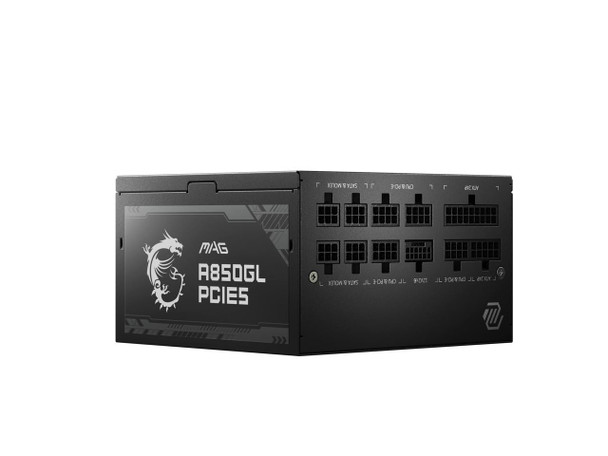

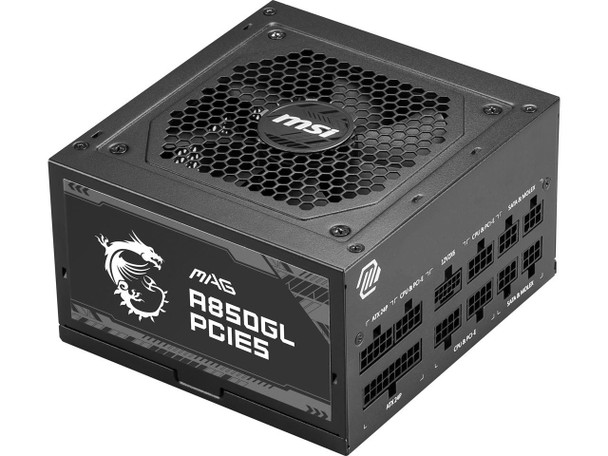

MAG A850GL PCIE5 850W Power Supply (maga850glpcie5)

This item is brand-new, factory sealed.

MAG A850GL PCIE5

ATX 3.0 compatible, native PCIe 5.0 connector

Supports NVIDIA GeForce RTX 40 Series graphics cards

Full modular design,Flat cables

80 Plus Gold certified for high efficiency

Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

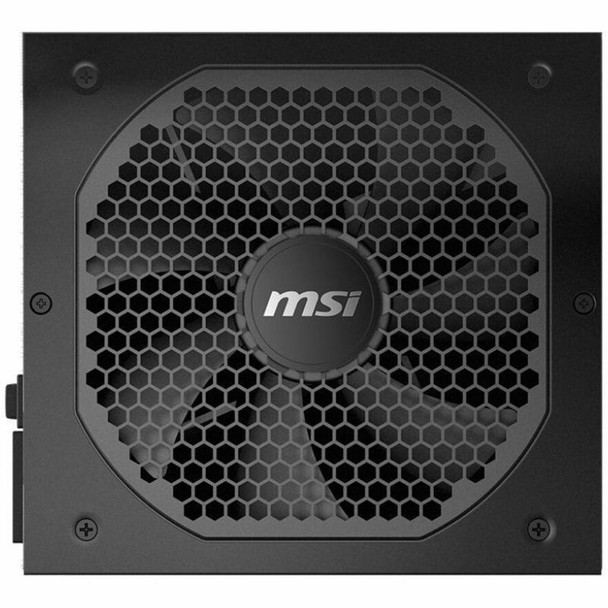

120mm Fluid Dynamic Bearing Fan

LLC Full Bridge Topology with DC-DC module design


MAG unite as one

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.


ATX 3.0 COMPATIBLE

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.


80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.


COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.


ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the systems overall build. Additionally, the included cable pack provides a storage solution for any unused cables.


ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. EFFICIENCY RATING
80 PLUS Gold (up to 90%) MODULAR
Yes (full modular) FAN SIZE
120 mm FAN BEARING
Fluid Dynamic Bearing PFC TYPE
Active PFC INPUT VOLTAGE RANGE
100 to 240 VAC POWER WATT
850W POWER EXCURSION
1700W (Note: up to 200% of the PSUs rated power for 100 microsecond) INPUT FREQUENCY RANGE
47-63Hz PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP ATX (24 PIN)
1 EPS (4+4 PIN)
2 PCI-E 5.0 (16 PIN)
1 (600W) PCI-E (6+2 PIN)
4 SATA (15 PIN)
8 MOLEX (4 PIN)
4 FDD (4 PIN)
1Item Dimension (L inchxW inchxH inch)
12 x 9 x 5

Weight
6.39 lb

Warranty Information
5 Years
