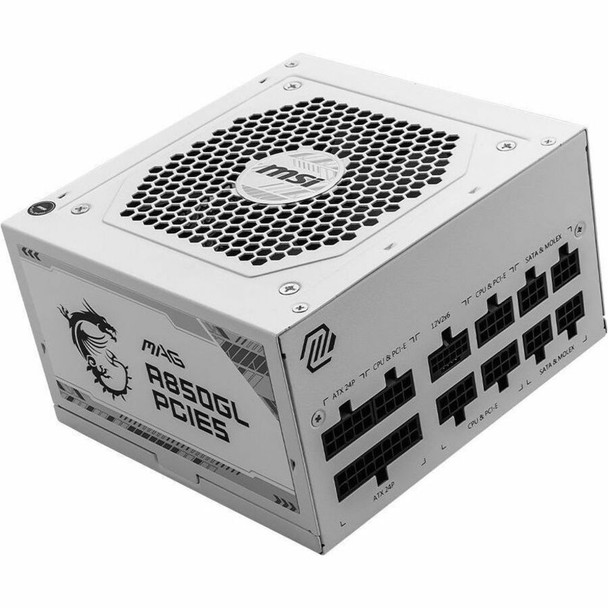

MSI MAG A850GL PCIE5 White Power Supply (maga850glpcie5wt)

This item is brand-new, factory sealed.

MAG A850GL PCIE5 WHITE

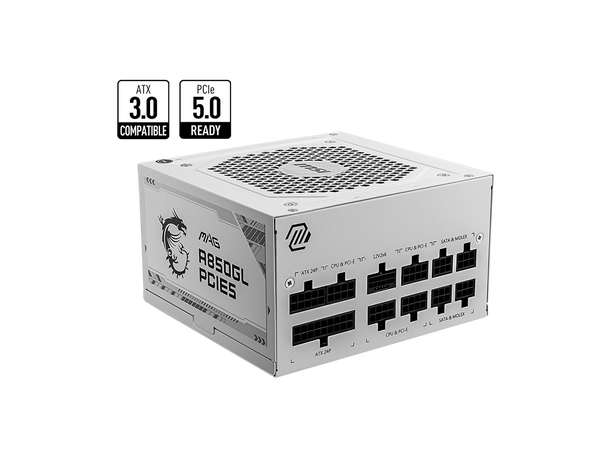

ATX 3.0 COMPATIBLE

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.



LEVEL UP YOUR GAME

With native 16 PIN PCIe connector this power supply is ready for Nvidia GeForce RTXTM 40 Series graphics cards.

It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.



ENERGY EFFICIENCY CERTIFICATION

The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold and Cybenetics Platinum certification promises lower energy consumption and higher efficiency.



COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.



ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the systems overall build. Additionally, the included cable pack provides a storage solution for any unused cables.



ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.



FLUID DYNAMIC BEARING

The power supplys fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.



DC TO DC & FULL BRIDGE

DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.Efficiency Rating
80 PLUS Gold (up to 90%)

Modular
Yes (full modular)

Fan Size
120 mm

Fan Bearing
Fluid Dynamic Bearing

PFC Type
Active PFC

Input Voltage Range
100 to 240 VAC

Power Watt
850W

Power Excursion
1700W (up to 200% of the PSUs rated power for 100s)

Input Frequency Range
47-63Hz

Protection
OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin)
1

EPS (4+4 pin)
2

PCI-E 5.0 (16 pin)
1 (600W)

PCI-E (6+2 pin)
4

SATA (15 pin)
8

MOLEX (4 pin)
4

FDD (4 pin)
1Item Dimension (L inchxW inchxH inch)
11 x 6 x 10

Weight
5 lbs

Warranty Information
3 YearsItem Dimension (L inchxW inchxH inch)
12 x 9 x 5

Weight
6.39 lbs

Warranty Information
10 Years
