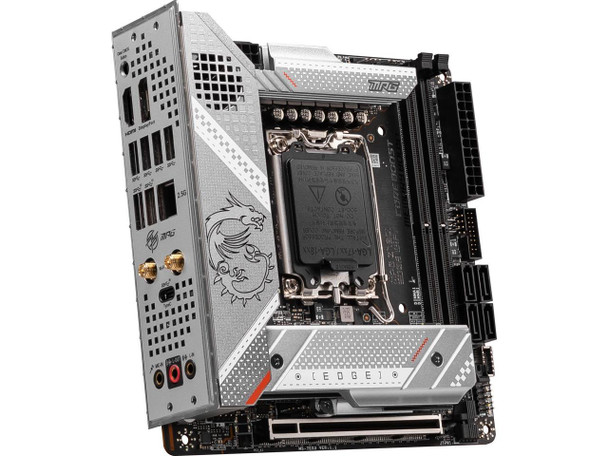

MSI MPG Z790I EDGE WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Mini ITX (mpgz790iedgewifi)

This item is brand-new, factory sealed.

MPG Z790I EDGE WIFI

Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket

Supports DDR5 Memory, up to 8000+(OC) MHz

Fast Game experience: PCIe 5.0 slots, Gen 4 x4 M.2, USB 3.2 Gen 2x2

Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost

Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 12-layer PCB made by server grade level material

Pre-installed I/O Shield: Better EMI protection and more convenience for installation


BE AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion. CHIPSET
INTEL Z790 CPU SUPPORT
Supports 12th/13th Gen Intel Core^TM Processors, Pentium Gold and Celeron Processors
LGA 1700 MEMORY
2x DDR5, Maximum Memory Capacity 96GB
Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 8000+ MHz
- 1DPC 2R Max speed up to 7200+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory ONBOARD GRAPHICS
1x HDMI^TM
Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz^Note
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz^Note
Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) STORAGE
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices USB
2x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front) LAN
Intel 2.5Gbps LAN WIRELESS / BLUETOOTH
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz^Note1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3^Note2, FIPS, FISMA
Note1: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Note2: Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel INTERNAL I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
1x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen 2x2 Type C ports LED FEATURE
4x EZ Debug LED BACK PANEL PORTS
Display Port
2.5G LAN
USB 3.2 Gen 2x2 20Gbps (Type-C)
Audio Connectors
Clear CMOS
HDMI^TM
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSION (W x L)
Mini-ITX
170mmx170mmItem Dimension (L inchxW inchxH inch)
9 x 8 x 4

Weight
3.00 lb

Warranty Information
3 years
