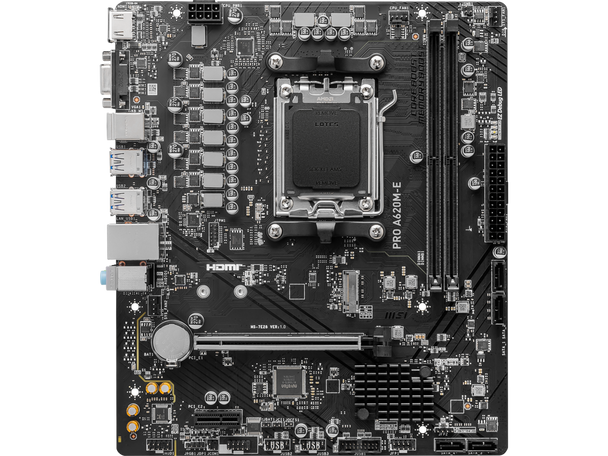

MSI Pro PRO A620M-E Gaming Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Micro ATX (proa620m-e)

This item is brand-new, factory sealed.

PRO A620M-E

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.


Supports AMD Ryzen 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Fast Game experience: PCIe 4.0 slot, Gen 4 x4 M.2

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strengthCHIPSET
AMD A620

CPU
Supports AMD Ryzen^TM 7000 Series Desktop Processors
Socket AM5

MEMORY
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6000+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPOONBOARD GRAPHICS
1x HDMI^TM
Support HDMI^TM 2.1, maximum resolution of 4K 60Hz¹
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
¹Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)STORAGE
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
4x SATA 6GRAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)LAN
Realtek RTL8111H Gigabit LAN

AUDIO
Realtek ALC897 Codec
7.1-Channel High Definition AudioINTERNAL IO
1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector (JRGB)
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A portsLED FEATURE
4x EZ Debug LED

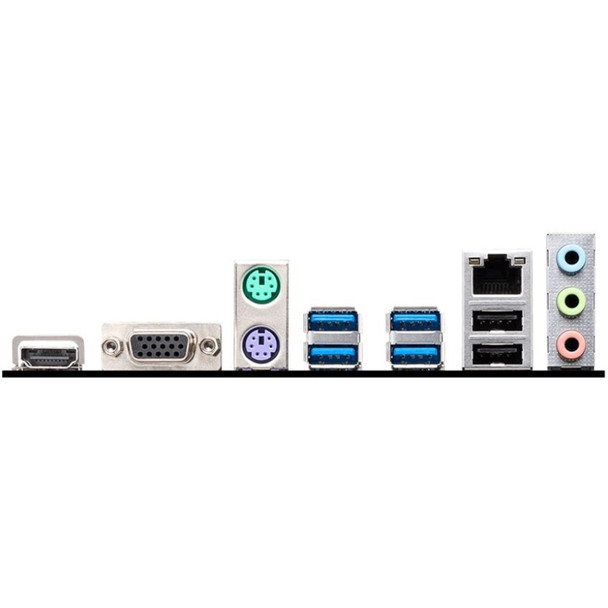

BACK PANEL PORTS
HDMI^TM
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0

OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit

PCB INFO
mATX
211mmx243.84mmItem Dimension (L inchxW inchxH inch)
11 x 11 x 4

Weight
4 lbs

Warranty Information
3 Years
