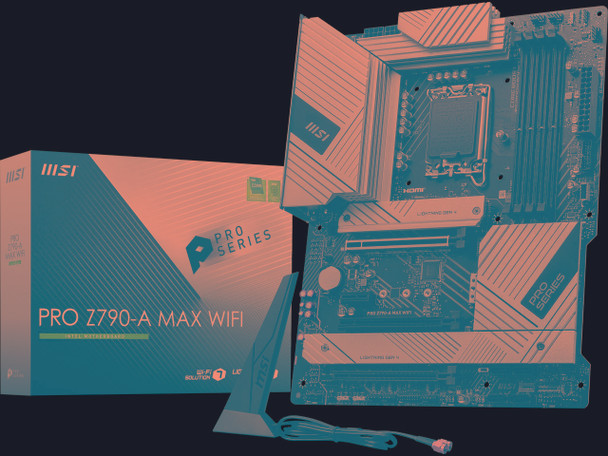

MSI PRO Z790-A MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (proz790-amaxwifi)
(No reviews yet)
Write a Review
- SKU:
- 20512694
- MPN:
- proz790-amaxwifi
- Availability:
- Out of stock
- Stock Update:
- 12/05/2025 11:41:26 PM PST
- Stock Update:
- 12/05/2025 11:41:26 PM PST
Description
This item is brand-new, factory sealed.
PRO Z790-A MAX WIFIPRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core 14th Gen and 13th Gen processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Chipset
INTEL Z790CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memoryOnboard Graphics
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)Audio
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF outputStorage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6GRAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devicesUSB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)LAN
Intel 2.5Gbps LANWIRELESS LAN AND BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C portsLED FEATURE
4x EZ Debug LEDBACK PANEL PORTS
DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
S/PDIF-OUTOPERATING SYSTEM
Support for Windows 11 64-bitItem Dimension (L"xW"xH")
14 x 11 x 3
Weight
4 lbs
Warranty Information
3 years
Features
Package Contents:
Intel
- PRO Z790-A MAX WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- m.2 screw/Standoff set
- 2 x m.2 clips
- wi-fi antenna
- 2 x sata cables
- driver dvd
Brand Compatibility:
Intel
Specs
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| General Information | |
| Brand Name | MSI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel ® next Gen and 13th Gen Core processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. M.2 Shield Frozr Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed. Enlarged Chipset Heatsink The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | PRO Z790-A MAX WIFI Gaming Desktop Motherboard |
| Manufacturer | MSI |
| Manufacturer Part Number | PROZ790AMAXWIFI |
| Product Model | PRO Z790-A MAX WIFI |
| Product Series | PRO |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported |
|
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Model | Z790 |
| Technical Information | |
| AI-powered | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| S/PDIF | Yes |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
