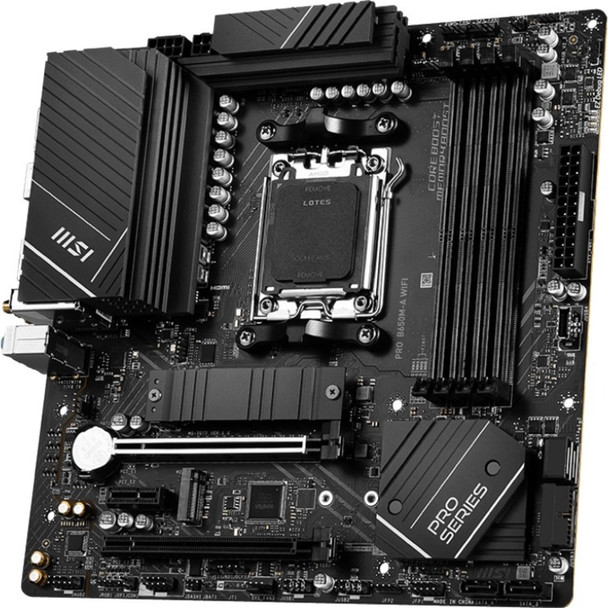

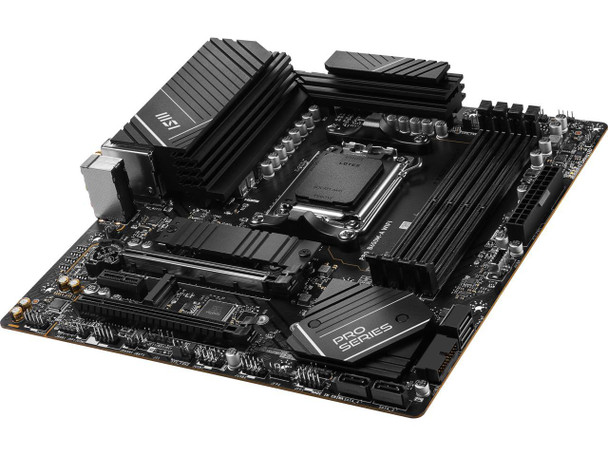

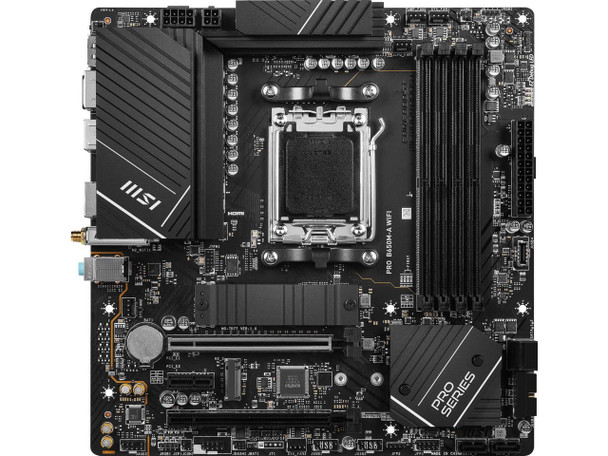

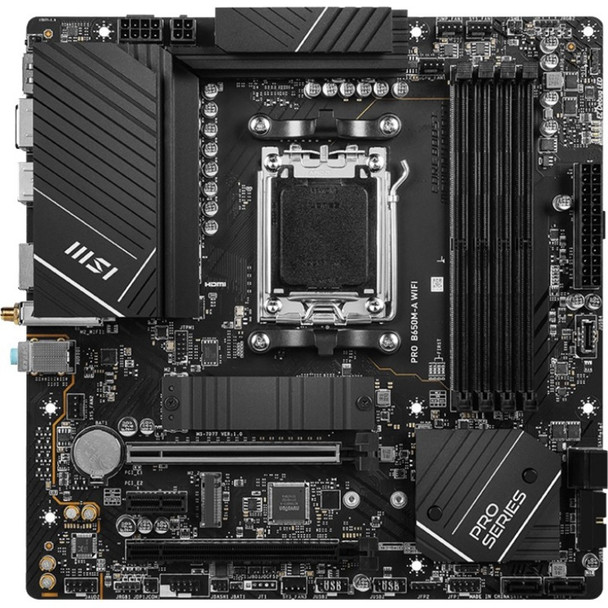

MSI B650M-A WIFI Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (prob650m-awifi)

This item is brand-new, factory sealed.

Supports AMD Ryzen 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)

Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Fast Game experience: PCIe 4.0 slots, Gen 4 x4 M.2 with M.2 Shield Frozr

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


PRO B650M-A is designed with tons of flexible tools with DDR5 memory version.


PRO SERIESBUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. CHIPSET
AMD B650 CPU SUPPORT
Supports AMD Ryzen^TM 7000 Series Desktop Processors
Socket AM5 MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5800+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO ONBOARD GRAPHICS
1x HDMI^TM
Support HDMITM 2.1, maximum resolution of 4K 60Hz^Note
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz^Note
Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front) LAN
Realtek 8125BG 2.5G LAN WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz ^Note1 bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3^Note2
Note1: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Note2: Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO
Realtek ALC897 Codec
7.1-Channel High Definition Audio INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports LED FEATURE
4x EZ Debug LED BACK PANEL PORTS
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
HDMI^TM
USB 3.2 Gen 2 10Gbps (Type-A) OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSION
mATX
243.84mmx243.84mmItem Dimension (L inchxW inchxH inch)
11 x 11 x 4

Weight
4.00 lb

Warranty Information
3 Years
