Description

This item is brand-new, factory sealed.

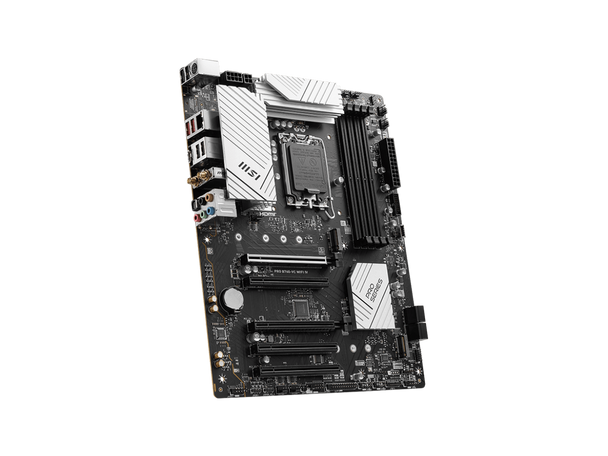

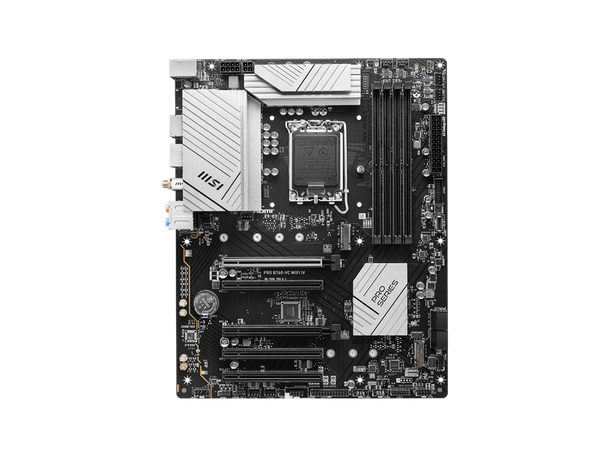

PRO B760-VC WIFI IV
PRO B760-VC WIFI IV is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core 14th Gen and 13th Gen processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Chipset
INTEL B760CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700Memory
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memorySlot
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF outputStorage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)LAN
Realtek RTL8125BG 2.5G LANWIRELESS LAN AND BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 portsLED FEATURE
4x EZ Debug LEDBACK PANEL PORTS
Keyboard / Mouse
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUTOPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bitItem Dimension (L"xW"xH")
14 x 11 x 3

Weight
4 lbs

Warranty Information
3 years

Specs

Onboard Interfaces
Number of SATA Interfaces	4
Total Number of Onboard USB Ports	7
Number of M.2 Interfaces	2
Number of Onboard USB 2.0 Ports	4
Physical Characteristics
Form Factor	ATX
Width	12"
Depth	9.6"
I/O Expansions
PCI Express Standard	PCI Express 4.0 PCI Express 3.0
Number of PCI Express x16 Slots	5
Total Number of PCI Express Slots	5
Interfaces/Ports
S/PDIF	Yes
Number of USB 2.0 Ports	4
Total Number of USB Ports	7
Number of Network (RJ-45) Ports	1
Memory
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Speed Supported	7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 5000 MHz 4800 MHz
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	256 GB
I/O Controller
RAID Supported	Yes
Controller Type	Serial ATA/600
RAID Levels	0 1 5 10
Video
Onboard Video	CPU Dependent Video
General Information
Brand Name	MSI
Manufacturer Website Address	http://www.msi.com
Marketing Information	PRO B760-VC WIFI IV PRO B760-VC WIFI IV is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors. BUSINESS ELEGANCE The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. COOLING OVERVIEW \| Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed. Chipset Heatsink The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit. OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. 6 PCB layers 2oz Thickened Copper SOLID PIN DESIGN The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads. ADVANTAGES OF SOLID PIN POWER CONNECTOR Improved stability : Larger contact area enhances stability during power delivery. Low impedance : Solid pins offer low impedance, enabling efficient power flow. Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions. Suitable for high-current applications. ANTI-CORROSIVE STAINLESS STEEL IO SHIELD Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields. THE GROUNDING STRUCTURE OF POWER PHASES The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
Product Type	Gaming Desktop Motherboard
Product Name	PRO B760-VC WIFI IV Gaming Desktop Motherboard
Manufacturer	MSI
Manufacturer Part Number	PROB760VCWIFIWT
Product Model	B760-VC WIFI IV
Product Series	PRO
Processor & Chipset
Chipset Manufacturer	Intel
Processor Generation Supported	14th Gen 13th Gen 12th Gen
Processor Supported	Core Pentium Gold Celeron
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Chipset Model	B760
Network & Communication
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.4
2.5Gigabit Ethernet	Yes
Gigabit Ethernet	Yes
Audio
Audio Channels	7.1
