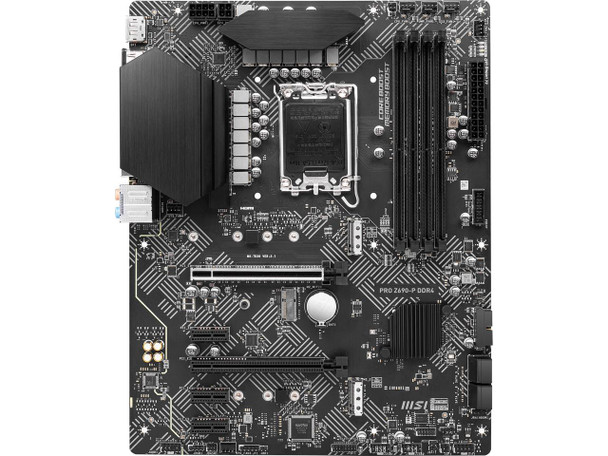

MSI Z690-P DDR4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX (proz690pddr4)

This item is brand-new, factory sealed.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.CPU (MAX SUPPORT)
i9SOCKET
1700CHIPSET
Intel Z690 ChipsetDDR4 MEMORY
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHzMEMORY CHANNEL
DualDIMM SLOTS
4MAX MEMORY (GB)
128PCI-E X16
2PCI-E X1
3SATAIII
4M.2 SLOT
2RAID
0/1/5/10TPM (HEADER)
1LAN
Realtek RTL8125BG 2.5Gbps LAN controllerUSB 3.2 PORTS (FRONT)
4(Gen 1, Type A)USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 4(Gen 1, Type A)USB 2.0 PORTS (FRONT)
4USB 2.0 PORTS (REAR)
2AUDIO PORTS (REAR)
Realtek ALC897 CodecDISPLAYPORT
1
