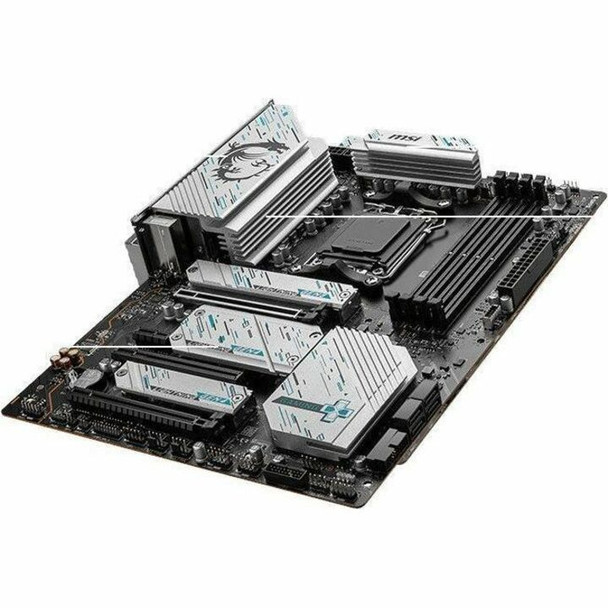

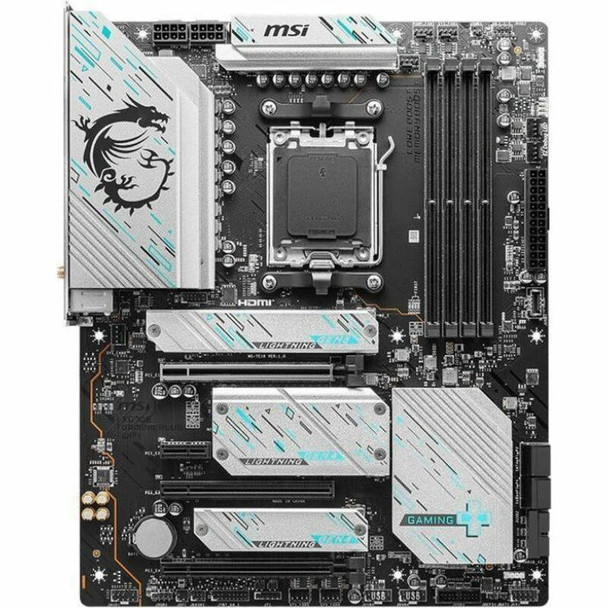

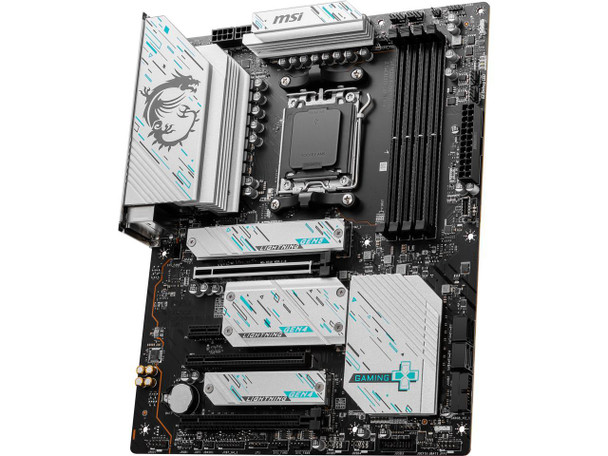

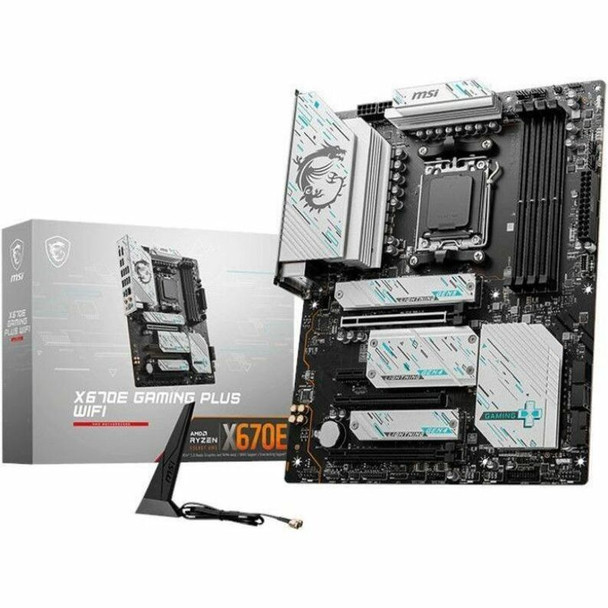

MSI X670E GAMING PLUS WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX (x670egamingpluswifi)
(No reviews yet)
Write a Review
- SKU:
- 20584137
- MPN:
- x670egamingpluswifi
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 07:09:02 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 5 | and pay only $224.41 each 224.41 |
| Buy 6 or above | and pay only $218.67 each 218.67 |
- Stock Update:
- 12/18/2025 07:09:02 PM PST
Description
This item is brand-new, factory sealed.
X670E GAMING PLUS WIFISupports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Fast Game experience: PCIe 5.0 slot, Gen5 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Chipset
AMD X670 CPU
Supports AMD RyzenTM 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7800+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPOTM Onboard Graphics
1x HDMITM
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot
3x PCI-E x16 slot
Supports x16/x1/x4
- Supports x16/x1/x4 (For RyzenTM 9000 and 7000 Series processors)
- Supports x8/x1/x4 (For RyzenTM 7 8700G and RyzenTM 5 8600G processors)
- Supports x4/x1/x4 (For RyzenTM 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
- M2_2 supports PCIe 4.0 x2 speed when RyzenTM 5 8500G is installed RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear) LAN
Realtek RTL8125BG 2.5Gbps LAN WIRELESS LAN and BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Note1: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Note2: Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports LED FEATURE

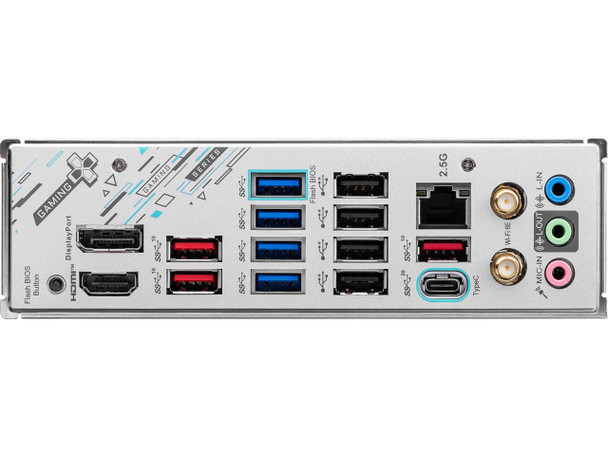

4x EZ Debug LED BACK PANEL PORTS
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0 (Type-A)
2.5G LAN
Flash BIOS Button
HDMITM
USB 3.2 Gen 2x2 20Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit PCB Info
ATX
243.84mm x 304.8mmItem Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
5.00 lb
Warranty Information
3 years
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| HDMI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| General Information | |
| Brand Name | MSI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | DIY FRIENDLY Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. EASY OVERCLOCKING WITH EXPO PROFILE MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability. Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. EXCLUSIVE UI OF AIDA64 EXTREME MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML. EXTEND YOUR RGB EXPERIENCE WITH EASE Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | X670E GAMING PLUS WIFI Gaming Desktop Motherboard |
| Manufacturer | MSI |
| Manufacturer Part Number | X670EGAMPLUSWIFI |
| Product Model | X670E GAMING PLUS WIFI |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | X670 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
