MSI

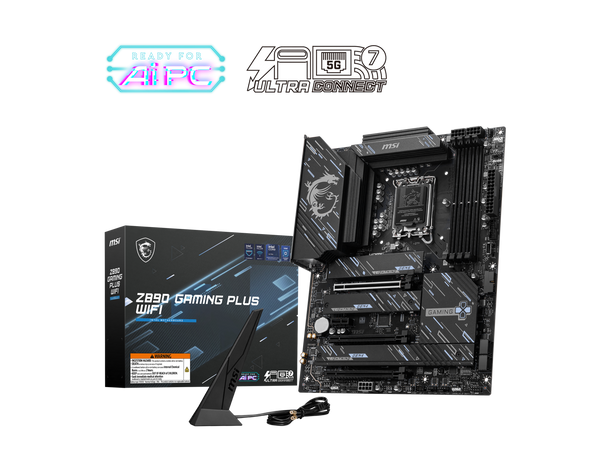

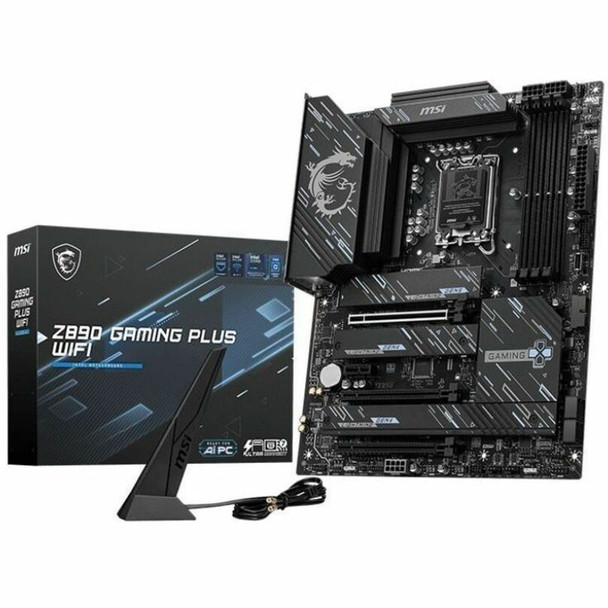

MSI Z890 GAMING PLUS WIFI ATX MOTHERBOARD LGA 1851 for Intel Core Ultra CPU (z890gamingpluswifi)
(No reviews yet)
Write a Review
- SKU:
- 20890188
- MPN:
- z890gamingpluswifi
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/19/2025 01:40:21 AM PST
- Stock Update:
- 12/19/2025 01:40:21 AM PST
Description
This item is brand-new, factory sealed.
Z890 GAMING PLUS WIFISupport Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Fast Game experience: PCIe 5.0 slot, Gen 5 x4 M.2
Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience Chipset
INTEL Z890 CPU
Supports Intel CoreTM Ultra Processors (Series 2)
LGA 1851 Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 4800+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
- The DIMM slots on this motherboard only have single-sided latches.
- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/. Onboard Graphics
1x HDMITM
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
ThunderboltTM 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K at 120Hz / 8K at 60Hz
Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Note: Please refer to the manual for M.2 SSD heatsink restrictions. RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Onboard Thunderbolt
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front) LAN
Intel KillerTM E5000 5Gbps LAN Internal IO
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports WIRELESS LAN and BLUETOOTH
Intel KillerTM BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz Note1 (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4Note2, MLO, 4KQAM
Note1: 6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
Note2: The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. LED FEATURE
4x EZ Debug LED BACK PANEL PORTS
DisplayPort
Keyboard / Mouse
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
ThunderboltTM 4 40Gbps (Type-C)
HDMITM
USB 2.0
USB 5Gbps Type A ports
USB 10 Gbps Type C ports
USB 10 Gbps Type A ports OPERATING SYSTEM
Support for Windows 11 64-bit PCB Info
ATX
243.84mm x 304.8mmItem Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
14 x 11 x 3 lb
Warranty Information
3years
Features
Package Contents:
- Z890 GAMING PLUS WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- SATA Cable
- Cable Stickers
- Wi-FI Antenna
Specs
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Warranty | |
| Additional Warranty Information | 3 Year Limited Warranty <br /> <p><br /></p> |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| General Information | |
| Brand Name | MSI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | Z890 GAMING PLUS WIFI Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. AI Engine provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment. AI LAN MANAGER optimizes networking performance and minimizes latency, providing a seamless online experience. Frozr AI Cooling automatically adjusts fan duty to make sure the system stays in cool, stable and high performance. One Finger for EZ GPU Installation The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces. Pre-Installed I/O Shield The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build. EZ MOUNTING MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. EZ ANTENNA MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation. EZ Conn-Design (JAF_1) The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimizing the entire building process. EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. EZ IDENTIFY To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white and PCIe 8-pin header in gray, enabling users to manage cables more efficiently. EZ OVERCLOCKING While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings. CREATION BOOST One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level. AI BOOST An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. *Enabled with compatible processors. XMP Choose from preset XMP profiles to automatically overclock compatible DDR memory for optimal performance. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | Z890 GAMING PLUS WIFI Gaming Desktop Motherboard |
| Manufacturer | MSI |
| Manufacturer Part Number | Z890GAMINGPWIFI |
| Product Model | Z890 GAMING PLUS WIFI |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Chipset Model | Z890 |
| Technical Information | |
| AI-powered | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 4 |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
