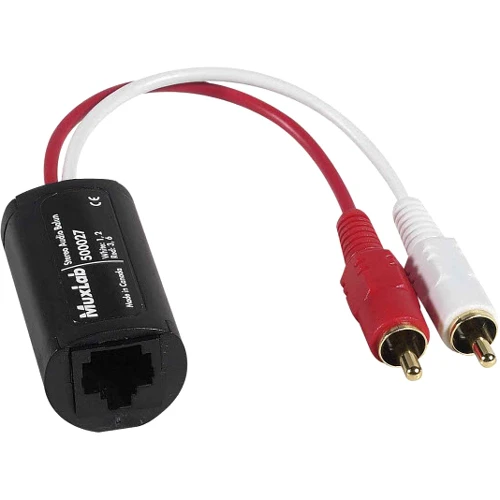

MuxLab Stereo Audio Balun (500027)
- SKU:
- 20988367
- MPN:
- 500027
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/12/2026 02:44:08 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $55.95 each 55.95 |
- Stock Update:
- 10/12/2026 02:44:08 AM PST
Description
This item is brand-new, factory sealed.
The Stereo Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where primarily midrange audio frequency response is required. Used in pairs, the Stereo Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment. The Stereo Audio Balun also works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017 and 500200 for a more complete cabling solution.
Features
Environment
Line level unbalanced analogue audio
Devices
DVD, VCR, camcorders, audio mixers, audio matrix switchers, audio splitters, audio distribution amplifiers, boosters, satellite receivers, MPEG players, laptops, stereo audio amplifiers, audio switchers, integrated TV monitors and other line level audio equipment
Transmission
Transparent to the user.
Bandwidth (3dB roll-off point) (400 Ω source & 50 kΩ receiver)
Up to 1,000 ft (305m): 60Hz - 20 kHz 1,000 ft (305m) to 5,000 ft (1.5 km): 100Hz - 20 kHz
Maximum Input Level
1.1Vp-p
Insertion Loss per Balun Pair
Less than 1 dB per pair over the frequency range
Common Mode Rejection (CMMR)
Greater than 60 dB @ 1 kHz
Audio Source Impedance
Less than 600 ohms
Audio Receiver Impedance
10 k ohms or greater
Impedance Transformation Ratio
Single unit: 4:1 (source: line)
Cable - UTP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Max. Distance - Cat 5e/6 UTP
5,000 ft (1,525m)
Connectors
Two (2) RCA-M 6" cable leads One (1) RJ45
Pin Configuration (RJ45) EIA 568 A or B
Audio 1 (White): pins 1[R] & 2 [T] Audio 2 (Red): pins 3 [R] & 6 [T]
Temperature
Operating: 0? to 55? C. Storage:-20? to 85? C. Humidity: up to 95%
Enclosure
ABS. Fire retardant plastic
Country of Origin:
Canada
Specs
| Physical Characteristics | |
| Height | 1.9" |
| Diameter | 1" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | MuxLab |
| Manufacturer Website Address | http://www.muxlab.com |
| Marketing Information | The Stereo Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where primarily midrange audio frequency response is required. Used in pairs, the Stereo Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment. The Stereo Audio Balun also works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017 and 500200 for a more complete cabling solution. |
| Product Type | Audio Extender |
| Product Name | Stereo Audio Balun |
| Manufacturer | MuxLab, Inc |
| Manufacturer Part Number | 500027 |
