Noctua 138371 Fan Nf-s12a Flx Knobs Blade Tips 3 Speed Sso2 Bearing 120x120x25mm Retail

This item is brand-new, factory sealed.

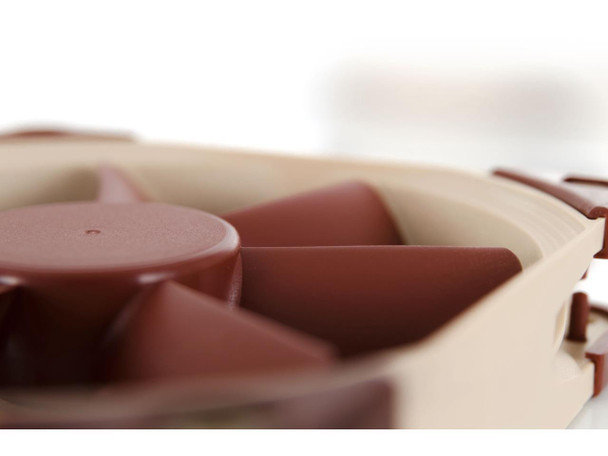

The NF-S12A marks the third generation of Noctuas signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200/900/700rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctuas trusted premium quality make it an elite choice for quiet case cooling. Size
120x120x25 mm

Connector
3-pin

Bearing
SSO2

Blade Geometry
S-Series with Anti-Stall Knobs Frame Technology
AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%)
1200 RPM

Rotational Speed with L.N.A. (+/- 10%)
900 RPM Rotational Speed with U.L.N.A. (+/- 10%)
700 RPM

Airflow
107,5 m/h

Airflow with L.N.A.
83,2 m/h

Airflow with U.L.N.A.
65,8 m/h

Acoustical Noise
17,8 dB(A) Acoustical Noise with L.N.A.
10,7 dB(A)

Acoustical Noise with U.L.N.A.
7,4 dB(A)

Static Pressure
1,19 mm H2O

Static Pressure with L.N.A.
0,73 mm H2O

Static Pressure with U.L.N.A.
0,51 mm H2O Max. Input Power
1,44 W

Max. Input Current
0,12 A

Voltage
12 V

MTBF
> 150.000 h Scope of Delivery
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
3:4-Pin Adaptor
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws Item Dimension (L"xW"xH"):
8.5 x 6 x 1.5

Weight:
0.9 lb

Warranty Information:
6 Years

Package Contents:

• NF-S12A FLX Cooling Fan
• Low-Noise Adapter (L.N.A.)
• Ultra-Low-Noise Adapter (U.L.N.A.)
• 3-pin to 4-pin Adapter
• 30cm Extension Cable
• 4 x Vibration-Compensators
• 4 x Fan Screws
