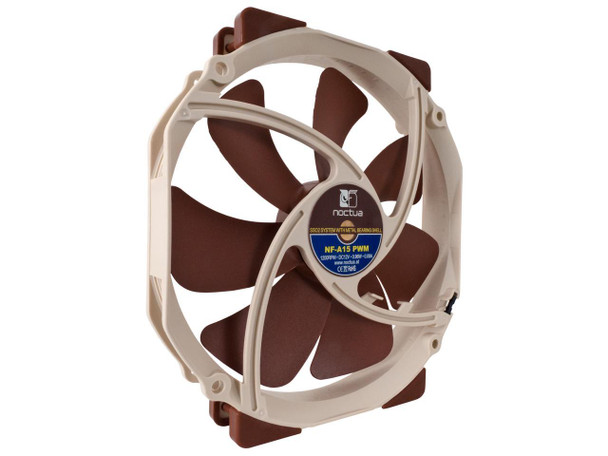

Noctua 166678 Fan Nf-a15 Pwm 140x140x25mm 4pin Sso2 Bearing A-series Blade Geometry Retail

This item is brand-new, factory sealed.

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctuas AAO (Advanced Acoustic Optimisation) standard. The NF-A15s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on todays high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctuas custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturers warranty, the NF-A15 is a premium choice for the highest demands. Size
140x150x25 mm

Connector
4-pin PWM

Bearing
SSO2

Blade Geometry
A-Series with Flow Acceleration Channels Frame Technology
AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%)
1200 RPM

Rotational Speed with L.N.A. (+/- 10%)
900 RPM

Min. Rotational Speed (PWM, +/-20%)
300 RPM Airflow
115,5 m/h

Airflow with L.N.A.
88,7 m/h

Acoustical Noise
19,2 dB(A)

Acoustical Noise with L.N.A.
13,8 dB(A)

Static Pressure
1,51 mm H2O Static Pressure with L.N.A.
0,89 mm H2O

Max. Input Power
0,96 W

Max. Input Current
0,08 A

Voltage
12 V

MTBF
> 150.000 h Scope of Delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws Item Dimension (L"xW"xH"):
8.5 x 6 x 1.5

Weight:
0.9 lb

Warranty Information:
6 years
