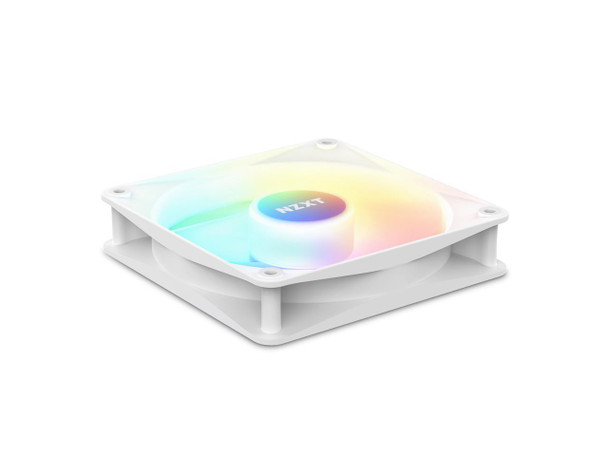

NZXT RFC12SFW1 F120 RGB Core RF-C12SF-W1 Cooling Fan
(No reviews yet)
Write a Review
- SKU:
- 20465602
- MPN:
- 275842
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/29/2025 01:54:47 PM PST
- Stock Update:
- 12/29/2025 01:54:47 PM PST
Description
This item is brand-new, factory sealed.
F120 RGB Core120mm Hub-Mounted RGB Fan
Overview
Details
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.
A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
Personalized lighting combinations through NZXT CAM software.
Seamlessly sync it with all your compatible NZXT lighting accessories.
The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
Anti-vibration rubber corners dampen vibration noise at any speed.
Inside the Box
120mm RGB Fan
1
Mounting Screws
4Sublime RGB Lighting
8 individually addressable RGB LEDs mounted on fan hub are diffused through the semi-translucent blades.
Optimized Design
Fan hub and blades deliver high airflow and static pressure for both intake or exhaust locations.Key Specs
Material:Plastic, rubber, PCB
Fan Rated Voltage:12 V DC, 0.2 A, 2.4 W
LED Quantity:8
Bearing:Fluid Dynamic Bearing (FDB)
Fan Connector:4-pin PWMCooling
Speed:500-1,800 +/- 180 RPM
Airflow:78.86 CFM
Static Pressure:2.57 mm H2O
Noise:33.88 dBA
Bearing:Fluid Dynamic Bearing
Power Consumption:12 V DC, 0.2 A, 2.4 W
Connector:4-pin PWM
Output LED:8 LEDs
Connections and Cable Length (PWN):4-pin PWM Fan Cable 600mm x1
Connections and Cable Length (NZXT):4-pin NZXT RGB Cable 600mm x1Fan Life
Hours:60,000
Years:6General
System Requirement:PC with available NZXT RGB lighting connector and Windows 10/11 operating system. Controller sold separately. Some CAM features require Internet access, a valid email address, and acceptance of our current Terms of Service.Item Dimension (L"xW"xH")
5 x 2 x 7
Weight
1 lb
Warranty Information
2 Years
Specs
| Power Description | |
| Rated Current | 200 mA |
| Physical Characteristics | |
| Product Material |
|
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Product Color | White |
| Fan Depth | 1.02" |
| Color Family | White |
| Fan Height | 4.72" |
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Fan Information | |
| Fan Speed (Min) | 500 rpm |
| Fan Life | 6.8 Year |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| LED Color | RGB |
| Maximum Airflow | 78.86 CFM |
| Maximum Air Pressure | 2.57mmH2O |
| Fan Speed (Max) | 1800 rpm |
| Noise Levels (A-Weighted) | 33.9 dB(A) |
| General Information | |
| Brand Name | NZXT |
| Package Type | Retail |
| Manufacturer Website Address | http://www.nzxt.com |
| Marketing Information | ABOUT THE PRODUCT The F Series RGB Core Fans oer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure. FEATURES | LIGHT YOUR WAY Eight individually addressable LEDs allow for vibrant customization and each is diffused through semi-translucent fan-blades for gleaming lighting effects. KEEP IT COOL Featuring a refined hub and blade design, the F Series RGB Core Fans push air through your radiator for enhanced static pressure while still providing powerful airflow. CREATIVITY MEETS COOLING Create custom lighting combinations, set up profiles, control fan curves, and personalize your setup all through NZXT CAM. SYNC-UP SEAMLESSLY Synchronize your setup and control the mood with compatible NZXT lighting accessories and components with NZXT CAM. |
| Product Type | Cooling Fan |
| Product Name | F120 RGB Core RF-C12SF-W1 Cooling Fan |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | RF-C12SF-W1 |
| Product Model | RF-C12SF-W1 |
| Product Series | F |
| Product Line | F120 RGB Core |
| Packaged Quantity | 1 |
